The high diagnostic accuracy of 320 detector-row computed tomography coronary angiography (320-CTCA) in patients with suspected coronary artery disease (CAD) has been demonstrated in multiple single-centre trials, when compared with invasive coronary angiography (ICA) (1-4). In contrast with traditional 64-detector CT, 320-CTCA enables complete acquisition of the coronary tree in a single gantry rotation. However, 320-CTCA using first generation scanners requires strict heart rate (HR) control (≤60 beats per minute) due to a limited effective temporal resolution of 175msec, which is similar to traditional 64-detector systems (5). To achieve strict HR control, negative chronotropes (most commonly beta-blockers) are often administered via oral or intravenous route. This may increase patient length of stay, time to 320-CTCA, and may be contraindicated in a proportion of patients (6-10).
Imaging at higher HR (11-14) is often associated with motion artifacts resulting in suboptimal image quality (15). It is also associated with increased radiation exposure due to requirement for multiple gantry rotations (13), or wider padding around a mid-diastolic phase.
Second generation 320-CTCA has an effective temporal resolution of 137.5 msec with half-segment reconstruction. This has the potential to image the entire coronary tree at elevated HR with a single gantry rotation at 0.5mm slice collimation with complete 16 cm cranio-caudal coverage. Recent studies using second-generation 320-CTCA have demonstrated superior image quality at varying HR (11) and lower radiation dose (12) when compared with first-generation scanners (14). Data on the diagnostic performance in comparison to ICA at low and high HR is lacking. This study’s primary aim is to evaluate the diagnostic accuracy of second-generation 320-CTCA compared to ICA in patients with traditionally controlled (HR ≤60 bpm) and elevated HR (61–80 bpm). The secondary aim is to determine the impact of HR control on image quality and radiation exposure.
Consecutive patients referred for clinically mandated ICA to a tertiary referral centre (Monash Heart, Monash Medical Centre, Melbourne, Australia) between November 2012 and March 2014 for evaluation of suspected CAD were prospectively screened. Patients were excluded if they had known obstructive CAD as determined on invasive angiography (≥50% stenosis), coronary artery bypass grafting, previous coronary stenting, advanced atrioventricular block, atrial or ventricular arrhythmia, decompensated heart failure, steroid-dependent asthma or renal insufficiency (eGFR <60 mL/min/1.73 m2).
All patients gave written consent prior to inclusion in the study. After informed consent, all eligible patients who did not fulfill exclusion criteria underwent research 320-CTCA within one week of ICA. No patients required intervention between ICA and 320-CTCA. The institutional review board approved the study and all recruited patients provided signed informed consent.
ICA protocol and interpretation
ICA was performed via standard techniques by either radial or femoral approach at operator discretion. ICA images were visually evaluated by an interventional cardiologist blinded to clinical data and CTCA results by visual stenosis grade. Coronary segments were classified according to the modified American Heart Association 17-segment model (16) and significant stenosis was defined as ≥50% reduction of maximal coronary luminal diameter.
320-CTCA protocol and interpretation
Upon arrival in the CTCA department, HR was evaluated. Patients with baseline HR ≤80 bpm underwent 320-CTCA acquisition at their native HR; for patients with HR >80 bpm, 25 mg oral metoprolol or 5 mg oral ivabradine was administered with repeat dosing at 30-minute intervals to allow imaging to be performed at HR ≤80 bpm. On-table intravenous metoprolol was administered if the HR increased above >80 bpm. All studies were performed on a second-generation 320-detector row system (AquilionOne VISION, Toshiba Medical Systems, Tokyo, Japan). Nitroglycerin 400 µg sublingually was administered 1 minute before contrast injection. A bolus of 75 mL of 100% Iohexal (Omnipaque 350) was administered at 6 mL/s followed by a 50 mL normal saline chaser. Scanning was manually triggered when peak contrast enhancement in the left ventricle was observed with no enhancement in the right ventricle. Scans were performed via an axial technique with detector collimation of 320 mm × 0.5 mm and no requirement for table movement due to 16 cm cranio-caudal coverage. Tube current was determined with the use of automatic exposure control (SUREExposure3D, Toshiba medical systems) on the basis of X-ray attenuation on anterior-posterior and lateral scout images and the reconstruction kernel. Tube potential was manually set by the radiographer with default at 100 kVp and adjusted to 120 or 135 kVp when the automatic tube current selected was maximum. Gantry rotation time was 275 msec with effective temporal resolution of 137.5 msec. Scans were performed with prospective electrocardiographic triggering using 70–85% of the phase window at HR <70 bpm and 30–80% when HR >70 bpm. Image acquisition was restricted to single beat acquisition (multi-beat acquisition was not performed). Images were reconstructed with a 512 × 512 matrix, 0.5 mm thick sections and 0.25 mm increments using kernel FC43, iterative reconstruction with adaptive iterative dose reduction 3D (AIDR3D, Toshiba Medical Systems) standard and asymmetric cone beam reconstruction (17). Mean effective radiation exposure was derived from the dose-length product multiplied by a conversion co-efficient for the chest (DLP × 0.014 mSv/mGy) (18).
CTCA images were visually assessed by consensus by two CT trained cardiologists. Readers were blinded to clinical and ICA datasets. Reconstructed images were reviewed on a computer-based platform (Vitrea FX 2.0, Vital Images, Minnetonka, Minnesota) with the best phase chosen for interpretation. Quantification was performed according to standardized 17-segment model (16) for all segments ≥1.5 mm diameter. Significant stenosis was defined as ≥50% reduction of the maximal luminal diameter. Image quality was assessed at per-segment level according to a previously published 5-point Likert score (19): 1=poor, impaired image quality limited by excessive noise or poor vessel wall definition; 2=adequate, reduced image quality with poor vessel wall definition or excessive image noise, limitations in low contrast resolution remain evident; 3=good, impact of image noise, limitations of low contrast resolution and vessel margin definition are minimal; 4=very good, good attenuation of vessel lumen and delineation of vessel walls, relative image noise is minimal, coronary wall definition and low contrast resolution well maintained and 5=excellent, excellent attenuation of the vessel lumen and clear delineation of the vessel walls, limited perceived image noise. If the segment was described as poor, the predominant artifact was identified as calcification, motion or noise. Non-interpretable segments were regarded as containing severe stenosis.
Continuous variables are reported as mean ± standard deviation or median with interquartile range. Normality of variables was assessed visually by plotting histograms and statistically by the Shapiro-Wilk test. Variables were compared using a Student t-test, Mann-Whitney or Kruskal Wallis as appropriate. Categorical variables were compared with a chi-square or Fishers exact test. Interobserver agreement between CT readers was measured the Cohen κ test with the scale: κ<0.2 indicates poor agreement, 0.21–0.40 fair agreement, 0.41–0.60 moderate agreement, 0.61–0.80 good agreement, 0.81–1.00 excellent agreement (12). Diagnostic accuracy of 320-CTCA compared to ICA are presented as sensitivity, specificity, positive predictive value (PPV) and negative predictive values (NPV); with precision expressed as 95% confidence intervals as well as by receiver operator characteristic (ROC) analysis comparison and chi-square test (20). Computation of confidence limits for vessels and segments were calculated by generalized estimating equations to account for within-patient clustering (21). Assessment of the Likert score of image quality probability according to HR group was evaluated by ordered logistic regression. Binary logistic regression was performed to assess the image quality difference between high and low HR groups against interpretable (Likert >2) vs. non-interpretable segments. Study analysis was performed on an intention-to-diagnose principle (3) to represent ‘real-world’ practices. A P value <0.05 was considered statistically significant. Statistical analysis was performed using Stata 14/MP (StataCorp, College Station, Texas, USA).
Of 885 consecutive patients undergoing ICA, 107 met inclusion criteria for study participation (Figure 1). During scan acquisition, 55 patients (Group 1) met traditional rate control criteria with HR ≤60 bpm and 52 (Group 2) had elevated HR from 61–80 bpm. The mean HR in Group 1 was 52±5 bpm compared to 69±8 bpm in Group 2 (P<0.001). The range of heart rate in the study was from minimum 37 bpm to maximum 80bpm. Twenty-nine patients required rate control medication due to baseline HR >80 bpm with 17 patients in Group 1 (31%) and 12 in Group 2 (21%), P=0.25. Baseline demographics and 320-CTCA scan parameters are shown in Tables 1 and 2 respectively.
There were 215 significant stenoses identified with 110 in Group 1 and 105 in Group 2 (P=0.93). Single vessel disease was present in 36 patients, double vessel disease in 28 patients and triple vessel disease in 10 patients in the entire cohort. There were no complications related to ICA.
There was a high prevalence of significant CAD (≥50% stenosis in any coronary segment) with per-patient prevalence in Group 1 in 39/55 (70.9%) on ICA vs. 37/55 (67.2%) on 320-CTCA (P=0.68). In Group 2 the prevalence of significant disease was 35/52 patients (67.3%) on ICA vs. 34/52 (65.3%) on 320-CTCA (P=0.84).

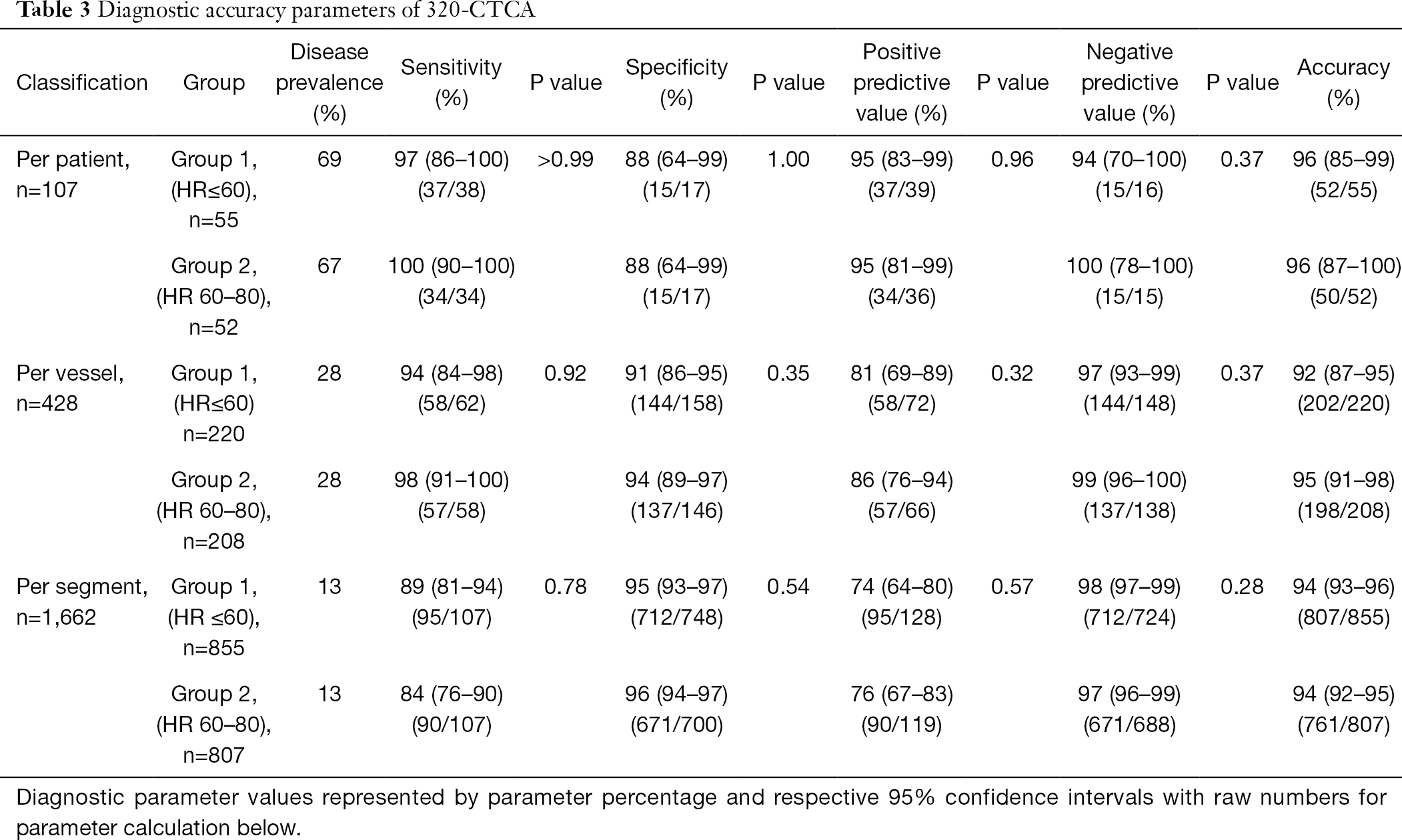

In Group 1,855 segments were evaluated by 320-CTCA and 807 segments in Group 2. At a per-segment level in Group 1 vs. Group 2, there was no significant difference in the sensitivity (89% vs. 84%, P=0.78), specificity (95% vs. 96%, P=0.54), PPV (73% vs. 76%, P=0.57) and NPV (98% vs. 97%, P=0.28) (Table 3). Overall per-segment accuracy was 94% in both groups.
There were 220 vessels analysed in Group 1 and 208 in Group 2. Overall accuracy was 92% in the Group 1 and 95% in Group 2. There was no significant difference in sensitivity (94% vs. 98% P=0.92), specificity (91% vs. 94%, P=0.35), PPV (81% vs. 86% p=0.32) or NPV (97% vs. 99% P=0.37) between groups.
The overall per-patient diagnostic accuracy across all 107 patients was 96%. There was no significant difference in accuracy parameters in the Group 1 vs. Group 2. Sensitivity was 97% vs. 100% (P>0.99), specificity 88% vs. 88% (P>0.99), PPV 95% vs. 95% (P=0.96) and NPV 94% vs. 100% (P=0.37).
ROC analysis at a per-patient level found no difference in diagnostic accuracy between groups (Group 1 0.93 vs. Group 2 0.94, P=0.82).
The interobserver agreement between readers was excellent (κ=0.84). Of 1,662 segments evaluated on 320-CTCA, 1,632 (98%) were interpretable (defined as Likert score ≥2). There was a significant difference in image quality between groups, with median Likert score 4 (IQR 3–4) in Group 1 vs. 4 (IQR 3–4) in Group 2 (P<0.01) with a larger proportion of ‘adequate’ (Likert score=2) segments in the Group 2 (73 vs. 21 in Group 1, P<0.01) (Table 4).
Ordered logistic regression demonstrated a decrease in image quality, with increasing Likert score for each unit increase in HR (β coefficient –0.371 (95% CI: –0.56, –0.17, P<0.001) with reducing probabilities across all levels of Likert score. However when assessed according to interpretable vs. non-interpretable segments, there was no significant difference in the log odds of higher image quality in Group 1 vs. Group 2 (β coefficient –0.19 (95% CI: –1.00, 0.61, P=0.64) (Table 4).
There was no difference in the number of poor or non-interpretable segments between groups (P=0.13) with assessment of the best CT phase. Of these 30 poor/non-interpretable segments in the entire cohort, 4 were due to motion artefact: 2 in controlled HR group (in the right posterior descending artery and posterolateral ventricular branch in the same patient) vs. 2 in elevated HR group: (in the mid left anterior descending artery and first diagonal branch in two different patients). The remaining segmental non-interpretability was due to severe calcium burden.
There was no significant difference in median radiation dose between groups [2.45 (IQR 1.62–3.24) mSv in Group 1 vs. 2.70 (IQR 1.58–4.39) mSv in Group 2 (P=0.35)] (Table 2). When stratified by HR of ≤60, 61–70 and 71–80 bpm, there was no difference in radiation dose (2.45 vs. 2.24 vs. 3.51 mSv, P=0.31). There remained no difference when the lowest cohort of HR (≤60 bpm) vs. the highest (71–80 bpm) were compared, P=0.10.
We evaluated the diagnostic accuracy of second generation 320-CTCA in 107 consecutively enrolled patients with suspected CAD. Our results demonstrate that second generation 320-CTCA preserves diagnostic accuracy with HR up to 80bpm compared to traditional HR controlled patients ≤60 bpm. Diagnostic accuracy was preserved despite the high prevalence of obstructive CAD (67%) and diagnostic performance is similar to previously reported results in first generation 320-detector scanners (21). Our results do not advise liberal avoidance of heart rate control prior to CTCA, but rather serve as reassuring data in patients in whom rate control can be challenging or contraindicated. The results also demonstrate that image quality, and radiation dose may not be significantly compromised using the second generation scanner.
This is the first reported study of diagnostic accuracy in second generation 320-scanners. Previous studies have focused primarily on image quality and radiation exposure. Notably patients in this study underwent a scan protocol in which the acquisition window was widened when HR was elevated to allow for multiple phase reconstruction and evaluation. This obviated the need for 2 beat scans using multi-segment reconstruction which has described as a limitation in previous studies (22). Furthermore the AIDR 3D algorithm was incorporated into our protocol which may improve spatial resolution and reduce image noise to enhance image quality and lower radiation dose (23).
Surprisingly our findings indicate a comparable radiation dose in scans acquired during high and controlled heart rates. This may be secondary to the use of higher tube current and lower tube potential (24) to achieve sub-millisievert radiation dose scans (12). Furthermore, the faster gantry rotation speed of 275 ms, allowing near isophasic imaging of the coronary tree avoids the need for multiple rotations. However, as mentioned our study utilized an increased phase window when HR >70 bpm to maximize phase capture. We did not find a difference in radiation dose across stratified HR cohorts, although there was clearly a numerical difference in those with HR >70 bpm at 3.51 vs. 2.45 mSv in those with HR <60 bpm, but this did not achieve statistical significance. Narrowing the phase window would further reduce radiation dosing although this requires confirmation with prospective testing.
Various Likert scoring systems have been used to report image quality in CTCA with recent studies comparing first and second generation quality differences, but not within scanner differences based on heart rate (11,14). These scoring systems have generally been described in terms of means, however the use of mean values representing an ordinal scale that is likely to be non-normally distributed data is hard to interpret. We have reported medians to reflect the skewed distribution of Likert score, and additionally performed ordered logistic regression to better reflect statistical parameters of image quality. These methods demonstrate that increasing heart rate reduces the probability of achieving excellent image quality; however the difference in image scores between interpretable and non-interpretable segments is not significant.
The impact of reducing image quality with increasing heart rate, whilst not affecting overall stenosis severity, may have implications at a lesion level when analysing plaque characteristics. Therefore, pending further study, optimal heart rate control is necessary for plaque composition analysis.
In patients requiring HR control prior to 320-CTCA beta-blockers are most commonly used, however their use is contraindicated in chronic obstructive or reactive airways disease, and are avoided in those with hypotension (8). Up to 16% of patients presenting for CTCA have such contraindications (6,7,9,10) whilst up to 50% will have an elevated HR (7,10). Even with the addition of beta-blockade, up to 44% of patients may not be able to reach suggested target HR for protocol acceptable imaging (7). The demonstration of an ability of second-generation 320-CTCA to accurately scan patients with HR up to 80 bpm may not only result in less requirement for beta-blockade, but also increased clinical service delivery and efficiency.
We acknowledge certain limitations to our study: this is a single-centre study of a selected and non-randomized patient population with vendor specific software and may not be generalizable to scanners with lower temporal resolution. Additionally, the study was reported by highly experienced cardiologists and therefore results may not be applicable to lower volume centres. The two groups are based on HR at presentation with subsequent beta-blockade if dictated by study protocol, providing two convenience samples rather than randomized groups. The relatively small numbers in each group may have resulted in a type II error with regards to no difference in radiation dose between groups. Furthermore, we excluded patients who had persistent atrial fibrillation. This is because our aim was to assess the influence of heart rate alone on diagnostic accuracy, without R-R interval variability. Finally, we did not assess plaque composition and only luminal stenosis which may impact lesion-level characterization.
In patients with suspected CAD, second-generation 320-CTCA (Aquilion ONE) provides good overall diagnostic accuracy despite reduced image quality in patients with HR up to 80bpm. There is a small, non-significant increase in radiation dose with patients at higher heart rates. Future study is required to assess plaque level characterization at elevated heart rates, as well as assess the potential improvement in departmental efficiency with a lower requirement for pre-scan beta-blockade.
Conflicts of Interest: The authors have no conflicts of interest to declare.
Ethical Statement: This study has been approved by the local human research ethics committee and therefore performed in accordance with the ethical standards laid down in the 1964 Declaration of Helsinki and its later amendments. All persons gave their informed consent prior to inclusion in the study.
