MR imaging of vulnerable carotid plaque
Review Article on Advanced Imaging in The Diagnosis of Cardiovascular Diseases

MR imaging of vulnerable carotid plaque

Michael E. Porambo1, J. Kevin DeMarco1,2

1Department of Radiology, Walter Reed National Military Medical Center, Bethesda, MD, USA; 2Department of Radiology, Uniformed Services University of the Health Sciences, Bethesda, MD, USA

Contributions: (I) Conception and design: All authors; (II) Administrative support: None; (III) Provision of study materials or patients: None; (IV) Collection and assembly of data: None; (V) Data analysis and interpretation: None; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

Correspondence to: Michael E. Porambo. 8901 Wisconsin Avenue, Building 9, Floor 1, Bethesda, MD 20889, USA. Email: michael.e.porambo.mil@mail.mil

Abstract: Current risk stratification for stroke is still based upon percentage of carotid stenosis, despite this measure providing minimal patient-specific information on the actual risk of stroke for both symptomatic individuals without significant carotid artery stenosis as well as asymptomatic carotid stenosis patients. A continuously growing body of literature suggests that the identification and quantification of certain carotid plaque characteristics, including lipid-rich necrotic core (LRNC), thin/ruptured fibrous cap (FC), and intraplaque hemorrhage (IPH), provide a superior means of predicting future stroke. These characteristics are identifiable via magnetic resonance imaging (MRI), with most features detectable using commercially available coils and sequences utilized in routine clinical practice in as little as 4 minutes. The presence of LRNC, a thin/ruptured FC, and IPH is associated with increased risk of future stroke or TIA. Plaques with greater than 40% LRNC with a thin overlying FC are prone to rupture. LRNC is T2 hypointense and lacks enhancement on contrast enhanced T1 weighted images. Increasing LRNC size is associated with the development of new ulceration, FC rupture, increasing plaque burden, as well as fatal and nonfatal myocardial infarction, ischemic stroke, hospitalization for acute coronary syndrome (ACS), and symptom-driven revascularization, allowing for MR biomarkers of carotid plaque vulnerability to be utilized for systemic athero-thrombotic risk and not just stroke/TIA. LRNC typically shrinks with appropriate statin therapy, with PCSK9 inhibitors possibly playing a role in patients with inadequate response. Carotid plaques with IPH represent a more advanced stage of atherosclerotic disease. IPH is detectable with field strengths of both 3.0 T and 1.5 T and will demonstrate high signal on all T1 weighted imaging sequences. The presence of IPH increases the risk of future stroke in both symptomatic and asymptomatic patients, with multivariate analysis identifying IPH as a predictor of stroke, independent of percent stenosis, with no statistical difference in men vs. women, demonstrating that simple carotid stenosis measurements and traditional risk factor analysis may be inadequate in identifying patients at the highest risk for adverse cerebrovascular events. In the evaluation for recurrent stroke in recently symptomatic patients with >50% carotid stenosis, the estimated annual stroke risk is 23.2% in IPH+ patients and only 0.6% in IPH- patients, calling into question the current risk-benefit assessment for CEA. Additionally, a recent meta-analysis suggests that IPH+ plaque in patients with symptomatic <50% stenosis may be the etiology of embolic strokes previously labeled as “embolic stroke of undetermined source” (ESUS). There are no prospective drug trials testing the ability of any lipid-lowering therapies to decrease IPH and/or total plaque volume (TPV). Given the continuously increasing evidence of IPH as a significant predictor of carotid plaque progression and future adverse vascular events, trials aimed at targeted therapy for IPH represents a significant need.

Keywords: Carotid atherosclerosis; carotid artery plaque; magnetic resonance imaging (MRI); carotid stenosis


Submitted Jan 26, 2020. Accepted for publication Mar 03, 2020.

doi: 10.21037/cdt.2020.03.12


Introduction

Stroke remains a leading cause of morbidity and mortality, with current risk stratification still based upon percentage of carotid stenosis. Randomized clinical trials (RCT) have demonstrated that carotid endarterectomies (CEA) reduce the risk of future stroke in recently symptomatic patients with ≥70% ipsilateral carotid stenosis (1,2) and to a lesser extent in asymptomatic patients (3,4). However, simple carotid stenosis measurement provides minimal patient-specific information on the actual risk of stroke for symptomatic individuals with less significant carotid artery disease and asymptomatic carotid stenosis patients. In addition, the risk of stroke has decreased since these landmark RCTs due to improvement in medical therapy, and in some carotid stenosis patients CEA may no longer offer additional benefit (5). MR imaging of unstable carotid plaque after guideline-based medical therapy may therefore provide this needed additional risk stratification to better select an appropriate treatment for the individual patient. Within the last decade, a growing body of literature suggests that the presence of certain carotid plaque characteristics provide a superior means of predicting future stroke when compared with percentage of carotid stenosis. These carotid plaque characteristics, including lipid-rich necrotic core (LRNC), thin/ruptured fibrous cap (FC), and intraplaque hemorrhage (IPH), are detectable via magnetic resonance imaging (MRI), with most features detectable using commercially available coils and sequences utilized in routine clinical practice in as little as 4 minutes. An even more detailed, comprehensive evaluation of carotid plaque using dedicated carotid surface coils and specialized MR sequences is also available, requiring approximately 40 minutes of scanner table time.


Definition of vulnerable plaque

Histological studies have demonstrated that coronary artery plaques with large LRNC and a thin overlying FC are associated with sudden cardiac death, leading to the concept of “vulnerable plaque (6).” The key features of the vulnerable plaque were defined in two multidisciplinary consensus review articles (7,8). The authors stressed that rupture-prone plaques are not the only vulnerable plaques and that all types of plaque with a high likelihood of thrombotic complications and rapid progression should be considered as vulnerable. The original concept of the coronary vulnerable plaque was then extended to the carotid arteries (9). Many of these features, including carotid plaque volume, maximal wall thickness, large LRNC with a thin or ruptured FC, and IPH were found to be detectable and quantifiable via MRI, each with specific imaging characteristics (10).


MR findings of vulnerable plaque

Morphology

Plaque thickness/volume

Carotid plaque is best found at or near the carotid bifurcation and may or not contribute to a significant level of stenosis. Multicontrast MRI of the carotid arteries using dedicated carotid coils and research MR sequences has been extensively tested, with initial repeatability studies of plaque morphology from a multi-institution study showing that plaque measurement error based on multiple locations [e.g., total plaque volume (TPV)] was, in general, lower than a single location (e.g., maximal wall thickness), making TPV an attractive measurand for future prospective imaging-guided therapeutic drug trials (11).

Ulcerations/surface irregularity

In the North American Symptomatic Carotid Endarterectomy Trial (NASCET), a plaque was defined as ulcerated either if an ulcer niche was seen in profile as a crater from the lumen into a stenotic plaque or if seen en face as a double density (12). The plaque was considered irregular if there were multiple possible small craters. In a separate study of 128 symptomatic severely stenotic patients, a very strong association was seen between detailed histology from CEA specimens and preoperative intra-arterial angiography. The angiographic ulcerations were associated with IPH and large LRNC (13). These intra-arterial angiographic ulceration definitions have been extended to MR, using both the luminal evaluation on bright-blood MR angiograms as well as direct visualization of the > 1 mm ulceration niche extending into the carotid plaque on cross-sectional black-blood MR series (14,15).

Composition

LRNC

LRNC is a heterogeneous tissue composed of cholesterol crystal, apoptotic cellular debris, and particles of calcium (14). As described previously, a large LRNC occupying more than 40% of the plaque with a thin overlying FC infiltrated by macrophages was prone to rupture (7). Multicontrast carotid artery MRI using black-blood T2 weighted (T2W), T1 weighted (T1W), and bright-blood time-of-flight (TOF) MR angiography (MRA) has been histologically validated to accurately identify and quantify LRNC (9,16), with contrast-enhanced (CE) T1W images improving the differentiation between nonenhancing LRNC and the surrounding fibrous plaque tissue (17) (Figure 1). LRNC is hypointense on T2W images and will not enhance on CE-T1W images. It may or may not be associated with IPH.

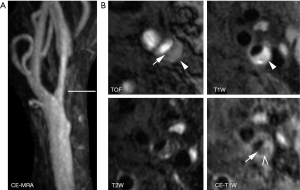

Figure 1 Comparison of high-resolution MR angiography, multicontrast 3 Tesla in vivo carotid plaque MR imaging, and ex vivo histologic evaluation of a carotid endarterectomy specimen. (A) There is 82% carotid stenosis on the high-resolution carotid CE MRA; (B) these examples of T1W, T2W, TOF, and CE-T1W plaque images obtained at the level of the carotid artery stenosis (A) show how the 3-T in vivo carotid plaque MR imaging identifies the LRNC (yellow outline) and loose matrix (purple outline) through the right carotid artery plaque; (C) the region of the LRNC is dark (curved arrow) on these T2W images, whereas the areas of loose matrix (arrow) is bright; (D) the percentage areas of plaque that were characterized as LRNC (yellow outline) and loose matrix (blue outline) on the histologic slide is similar to that measured on the in vivo 3-T MR images. CE MRA, contrast-enhanced MR angiography; T1W, T1 weighted image; T2W, T2 weighted image; TOF, time-of-flight MR angiography; CE-T1W, contrast-enhanced T1 weighted image; LRNC, lipid-rich necrotic core. (From DeMarco JK, Huston J 3rd. Imaging of high-risk carotid artery plaques: current status and future directions. Neurosurg Focus 2014;36:E1 with permission.)

FC is most accurately characterized with 3D TOF MRA and CE-T1W images. Utilizing dedicated carotid coils, research MR sequences, and either noncontrast 3D TOF MRA or CE-T1W MRI, multiple authors have demonstrated the ability to differentiate between a thick, intact FC and a thin or ruptured FC. Using 3D TOF MRA, Hatsukami et al. demonstrated a high level of agreement (89%) between MRI and histological findings (18), with Cai et al. instead utilizing CE-T1W to demonstrate FC with moderate-to-good correlation between carotid MRI findings and the excised histological specimens (16). The overlying FC is described as intact if there is an enhancing band adjacent to the dark lumen on CE-T1W, with a smooth luminal surface on TOF and CE-T1W images. A thin but still intact FC will demonstrate a smooth luminal surface, but will lose the enhancing band on CE-T1W images (Figure 2). A ruptured FC will demonstrate a disrupted, dark band on CE-T1W with an irregular luminal surface on all images. Ultimately, the distinction between thin vs. ruptured is less important than thick vs not thick (i.e., thin or ruptured), as thin and ruptured FCs are both associated with increased risk of future stroke/TIA.

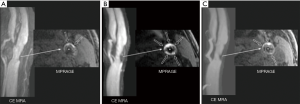

Figure 2 Coronally acquired CE-MRA and transverse images of a complicated carotid plaque of the left carotid artery from a 75-year-old man with right-sided weakness. (A) Maximum intensity projection of CE-MRA demonstrates a 55% smooth stenosis at the left internal carotid artery. The horizontal line indicates the level of the transverse carotid plaque images (shown in B); (B) disrupted dark band (arrow) on the TOF angiogram and discontinuation of the high-intensity band on CE-T1WI indicate a thin fibrous cap. High intensity on TOF and precontrast T1W indicate regions of hemorrhage (arrowhead). The low-intensity area on the CE-T1WI indicates a lipid-rich necrotic core area occupying 31% of the wall area (chevron). Notice that the hemorrhage seen on TOF and T1WI almost completely fills the lipid-rich necrotic core as seen on the CE-T1WI. Symptomatic plaques tend to have a hemorrhagic lipid-rich necrotic core with a thin or ruptured fibrous cap. CE MRA, contrast-enhanced MR angiography; T1W, T1 weighted image; T2W, T2 weighted image; TOF, time-of-flight MR angiography; CE-T1W, contrast-enhanced T1 weighted image. (From Demarco JK, Ota H, Underhill HR, et al. MR carotid plaque imaging and contrast-enhanced MR angiography identifies lesions associated with recent ipsilateral thromboembolic symptoms: an in vivo study at 3T. AJNR Am J Neuroradiol 2010;31:1395-402 with permission.)

IPH

With IPH there is extravasation of proinflammatory lipid-rich membranes of red blood cells and iron into the arterial wall, which results in plaque destabilization (19). IPH will demonstrate high signal on all T1W imaging sequences, including magnetization-prepared rapid acquisition gradient-echo (MPRAGE), TOF, and fast spin-echo (FSE). It is typically seen within LRNC, but it may be seen elsewhere within the plaque. While identification of IPH is field-strength dependent (20), with 3 T outclassing 1.5 T, IPH is still readily detectable at 1.5 T. IPH was found to be detectable with both T1W and TOF MRA images at 1.5 T with a sensitivity of 82% and specificity of 77% by Saam et al. (9), whereas 3T MPRAGE depicted IPH with a similar sensitivity (80%) but a much higher specificity (97%) (21). MPRAGE, as compared with FSE and TOF, demonstrated higher diagnostic capability for the detection and quantification of IPH (21) (Figure 3). MPRAGE is clinically available on most MR manufactures at either 1.5 T or 3 T.

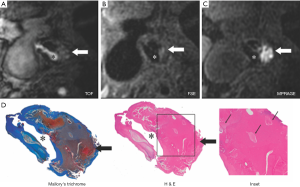

Figure 3 Moderately calcified IPH in left internal carotid artery in 75-year-old man. (A,B,C) On T1-weighted MR images, high-signal-intensity area (arrow) measures 15.8 mm2 on the TOF image, 8.6 mm2 on FSE image, and 24.8 mm2 on MPRAGE image; (D) mallory trichrome–stained histologic specimen shows variable red staining pattern in necrotic core (arrow) (Original magnification, ×10). Adjacent section stained with hematoxylin-eosin (H&E) shows large necrotic core (arrow) filled with IPH measuring 34.9 mm2. (Original magnification, ×10.) The inset is a magnified region of necrotic core (outlined in black) showing small fragments of calcification (arrows). (Original magnification, ×100.) *, the lumen of the left internal carotid artery. TOF, time-of-flight MR angiography; FSE, fast spin-echo; MPRAGE, magnetization-prepared rapid gradient echo; IPH, intraplaque hemorrhage. (From Ota H, Yarnykh VL, Ferguson MS, et al. Carotid Intraplaque Hemorrhage Imaging at 3.0 T MR Imaging: Comparison of the Diagnostic Performance of Three T1-weighted Sequences. Radiology 2010;254:551-63 with permission.)

IPH has been further characterized as type I or type II based on the appearance on T2W (22,23). Type I IPH is dark on T2W with short T2 and has been shown to correlate with a history of recent ipsilateral stroke/TIA. The original MPRAGE sequence was modified to include multiple echoes to not only identify IPH but to measure the IPH T2*. This Sequence for Hemorrhage assessment using INversion recovery and multiple Echoes (3D SHINE) allowed automatic detection of IPH and characterization of type I and type II IPH with a single 4-minute scan, replacing the more time consuming multicontrast approach (24). Simultaneous Noncontrast angiography and intraPlaque hemorrhage (SNAP) is a recently developed sequence that uses a phase sensitive inversion recovery technique with the phase sensitive reconstruction separating the high T1 signal intensity of IPH from negative signal corresponding to flowing blood within the lumen. A noncontrast MRA is generated by displaying only the negative signals, whereas displaying only the high signals yields a highly T1 weighted image suitable for IPH detection during the same 4–6 minute acquisition (25). It is important to note that neither 3D SHINE nor SNAP are currently clinically available.

Summary of single/multi-contrast carotid plaque MRI

In 2015, Moody and Singh made a compelling case for incorporating carotid plaque imaging into routine clinical carotid MRA, demonstrating that IPH can be reliably detected at either 1.5T or 3T with a variety of IPH-detecting vessel wall sequences, including widely-available MPRAGE, while only adding 4 to 5 minutes of scanner table time (26). As more data emerges upon the clinical relevance of IPH and its potential as a biomarker for future stroke/TIA (detailed in a later section), these additional few minutes may prove to be highly beneficial and cost-effective.

Recent data has demonstrated that the characterization of vulnerable plaque features need not be limited to research coils and sequences. A head-to-head comparison between dedicated carotid research coils/sequences versus large field of view, clinically available MR plaque sequences with a clinical neurovascular coil demonstrated high sensitivity, specificity, and accuracy of LRNC and IPH detection with the clinically-available coils/sequences, albeit with limited assessment for FC (27). Nevertheless, the ability to identify, characterize, and quantify most vulnerable plaque features using only clinically available coils and sequences represents a crucial step forward in shifting the paradigm from percentage stenosis to vulnerable plaque identification and quantification by decreasing the barriers to entry.

In a recent consensus statement, the Vessel Wall Imaging study group of the American Society of Neuroradiology presented its perspective on the current status of arterial wall imaging of the carotid artery. They stated that current carotid vessel wall imaging techniques can be informative, and made specific recommendations about imaging parameters for non-contrast and CE carotid plaque MR imaging (28).

Newer MR imaging techniques to detect vulnerable plaque

Single MR acquisition to identify/quantify multiple carotid plaque components

One difficulty with multicontrast carotid plaque MRI is the need to co-register multiple sequences. A newly developed 3D sequence to obtain three different contrast weightings during a single 5-minute acquisition can streamline carotid plaque imaging and analysis. The Multicontrast Atherosclerosis CHarterization (MATCH) sequence was used in 53 consecutive patients undergoing conventional multicontrast carotid plaque MRI. MATCH was comparable, if not superior, to conventional multicontrast carotid plaque MRI in identifying and quantifying major carotid plaque components (29). In another effort to streamline carotid plaque compositional analysis, a study using machine learning to identify LRNC, IPH, calcification, and fibrous tissue from a single SNAP acquisition reported promising initial results (30).

Parametric MR mapping to characterize carotid plaque

Although carotid plaque morphology and compositional analysis using multi-contrast sequences have been the mainstay of vulnerable plaque imaging, a push for more quantitative analysis using recently developed apparent diffusion coefficient (ADC), T1, and T2 parametric maps have revolutionized the field of MRI. The main benefit of quantitative ADC, T1, and T2 imaging is improved reproducibility, facilitating longitudinal monitoring of change in carotid plaque composition with little if any “learning curve” to interpret qualitative images (31). Early results demonstrate that the combination of ADC and longitudinal relaxation rate (R1) values measured in vivo enabled differentiation among LRNC, IPH, and fibrous tissue within carotid plaque endarterectomy specimens (32), with R1 defined as the reciprocal of the T1 value.


Risk stratification with vulnerable plaque MR features

LRNC with thin/ruptured FC

Recent studies have demonstrated that characterization of carotid plaque features offers far more information and superior risk stratification for patients in comparison to percentage stenosis and other cardiovascular risk factors. A sentinel paper by Takaya et al. found that the presence of a thin or ruptured FC and larger maximum percentage of LRNC as well as IPH and larger maximal wall thickness were predictors of future stroke/TIA in a group of asymptomatic moderate carotid stenosis patients (33). A prospective study of 120 patients with carotid stenosis demonstrated that increasing LRNC size was associated with the development of new ulceration or FC rupture and increasing plaque burden (34), with percentage carotid stenosis showing no association with either the development of new ulceration/FC rupture or increasing plaque burden at follow up. A meta-analysis of multiple single-center studies by Gupta et al. confirmed that the presence of LRNC, a thin/ruptured FC, and IPH is associated with increased risk of future stroke/TIA (35). Furthermore, there was no statistically significant difference in the hazard ratios (HR) between various plaque components, with LRNC showing the lowest HR, IPH demonstrating intermediate HR, and thin/ruptured FC having the highest HR. This rank ordering of risk is consistent with the original vulnerable plaque classification scheme. Lastly, in a prospective RCT of 2,323 patients with atherosclerotic disease, increasing size of LRNC and the presence of thin/rupture FC in carotid plaques were strongly associated with fatal and nonfatal myocardial infarction, ischemic stroke, hospitalization for ACS, and symptom-driven revascularization (36). Importantly, MR biomarkers of carotid plaque vulnerability can be used for systemic athero-thrombotic risk and not just stroke/TIA.

IPH

IPH as predictor of future stoke

The presence of IPH is a known predictor of future ipsilateral stroke. Carotid plaques with IPH represent a more advanced stage of atherosclerotic disease compared with plaque showing only LRNC with a thick and intact FC. In a recently published meta-analysis, Schindler et al. demonstrated that the presence of IPH increased the risk of future stroke both in 560 symptomatic and 136 asymptomatic patients, with multivariate analysis identifying IPH as an independent predictor of stroke with an adjusted HR of 11.0, independent of percent stenosis, with no statistical difference in men vs. women (37). This further demonstrates that simple carotid stenosis measurements and traditional risk factor analysis may be inadequate in identifying patients at the highest risk for adverse cerebrovascular events.

IPH as predictor of plaque progression

IPH is associated with plaque progression, with new IPH deposits suggesting a transition from stable to unstable carotid plaque morphology (38). IPH detected using large field-of-view neurovascular coils with widely available MPRAGE sequence and IPH detected as part of a multi-contrast carotid plaque MR protocol using research surface coils and carotid MRI sequences were both similar in their correlation with future stroke/TIA in a meta-analysis (39). Further, there was no correlation of future stroke/TIA with simple carotid stenosis measurements in this meta-analysis. Thus, adding a commercially available MPRAGE sequence to routine carotid MRA examination will add value in determining future cerebrovascular risk over and above simple carotid stenosis measurements.

IPH as predictor of stroke after TIA

In the 1990’s, patients with TIA or minor stroke were found to be at increased risk of future stroke and to a lesser extent future ACS (40). Since then, major changes in management of TIA or minor stroke have significantly decreased the risk of future stroke/ACS (41). The TIAregistry.com project enrolled 4,789 patients between 2009 and 2011 with acute TIA/minor stroke to determine their 1-year and 5-year risk of stroke and ACS using modern medical therapy. At one year, the composite cardiovascular outcome (stroke, ACS, death from cardiovascular causes) was 6.2% with most events related to recurrent stroke (5.1% stroke rate at one year) (42). The five-year analysis of this group demonstrated a composite cardiovascular outcome event rate of 12.9% with 50% of the events occurring in years 2–5. At five years, strokes occurred in 345 patients or 9.5% occurrence rate with 43% of the strokes in the second through fifth years (43). Despite improvements in medical therapy of TIA/minor strokes, many patients are still at high risk of future stroke/ACS. An important question is whether carotid plaque MR imaging can improve risk stratification in recently symptomatic carotid stenosis patients. In a study of 179 symptomatic >50% carotid stenosis patients, MPRAGE identified IPH in 114 patients at the time of initial symptom onset. During follow-up, there were 62 recurrent strokes, TIA, or amaurosis fugax with 57 events (92%) occurring in patients with IPH. When evaluating only recurrent stroke in recently symptomatic patients with >50% carotid stenosis, the estimated annual stroke risk is 23.2% in IPH+ patients and only 0.6% in IPH− patients. The very low stroke risk in symptomatic >50% stenosis IPH- patients calls into question current risk-benefit assessment for CEA (44).

IPH in symptomatic <50% carotid stenosis patients

Most stroke classification systems only consider carotid bifurcation atherosclerosis as the causative lesion if the stenosis is ≥50%. Embolic stroke of undetermined source (ESUS) represents 17% (9–25%) of all ischemic strokes (45). Ipsilateral <50% stenosis is seen in up to 40% of ESUS patients. Vascular imaging including IPH seen on MPRAGE demonstrates plaques with high-risk features that are five times more prevalent in the carotid artery ipsilateral to the stroke compared with the contralateral carotid artery (46). This meta-analysis suggests that vulnerable plaque in patients with symptomatic <50% carotid stenosis may be the cause of the embolic strokes previously labeled as ESUS. Correct identification of stroke etiology is critical to designing optimal therapy.

A summary of the MR characteristics and clinical significance of vulnerable plaque features can be found in Table 1.

Table 1

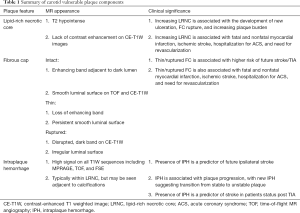

Table 1 Summary of carotid vulnerable plaque components
Full table

Treatment of vulnerable plaque

LRNC

The population based Multi-Ethnic Study of Atherosclerosis (MESA) of subclinical atherosclerosis in asymptomatic patients showed that LRNC was strongly associated with higher levels of plasma cholesterol (47). In the Rotterdam Study, there was a similar strong association between higher levels of cholesterol and the development of new LRNC over four years in a group of asymptomatic community-dwelling patients with carotid wall thickness ≥2.5 mm on baseline duplex ultrasonography (48). There is ample data demonstrating the response of LRNC to HMG-CoA reductase inhibitor (statin) therapy. A study by Zhao et al. in 2011 demonstrated that there is a stepwise response to LRNC from intensive lipid lowering therapy which proceeds in a predictable pattern, first by depletion of carotid plaque lipid and then subsequently by regression of TPV (49). This study illustrated the expected time course of response to lipid lowering therapy, with substantial plaque lipid depletion after 1 year on intensive therapy, continuing with a similar rate of change during year 2, and plateauing during year 3. Regression in overall plaque volume was observed after 2 to 3 years of therapy. In a modern phase II RCT (clinical trial no. NCT00851500), the placebo group of asymptomatic, stable atherosclerotic cardiovascular disease (ASCVD) patients with 16% - 79% carotid stenosis whose modifiable cardiovascular risk factors were well controlled, there was a mean regression of LRNC volume of –5.2 mm3/year seen at 6.9 months in the absence of IPH at baseline (50). Many of these patients had been on statin therapy for years before the study, suggesting continued decrease in LRNC beyond the three years noted by Zhao et al. (49). Interestingly, 7% of the patients in this study demonstrated major (>30 mm3/year) LRNC progression despite “adequate” statin therapy with rosuvastatin. The progression of LRNC was noted in 6.9 months. While some of these patients’ LRNC harbored IPH, most did not, and no other known cardiovascular risks predicted LRNC progression in this study. The authors concluded that the opportunity to reduce the residual risk associated with current medical therapy may be in patients with major progression seen on serial MRI (50). The subgroup of patients with residual large LRNC after 3 years of treatment or major progression of LRNC on “appropriate” medical therapy may therefore benefit from further intensification of their lipid-lowering therapy (51). One avenue to further intensify lipid-lowering therapy is to add proprotein convertase subtilisin kexin 9 inhibitors (PCSK9i) on top of maximally tolerated statin therapy. Typically, PCSK9i therapy can lower LDL-C to less than 50 mg/dL. In a recent study, the PCSK9i evolocumab induced further regression of coronary atheroma volume (52). No RCT evaluating carotid plaque volume with PCSK9i is currently available. There are no RCT demonstrating a clinical reduction in cerebrovascular and/or cardiovascular events using carotid plaque MRI to guide medical therapy. Hopefully, imaging substudies of two ongoing large RCTs [Carotid Revascularization Endarterectomy versus Stenting Trial (CREST-2) and Asymptomatic Carotid Surgery Trial (ACST-2)] will help evaluate the role of vulnerable plaque imaging in carotid stenosis patients.

IPH

IPH is thought to form when there is compromise of the endothelial integrity of intraplaque vessels (19). In the Rotterdam Study, a subgroup of community-dwelling asymptomatic patients with carotid wall thickness ≥2.5 mm on screening carotid duplex ultrasound underwent two carotid plaque MR studies four years apart, which demonstrated new IPH statistically more often in patients with severe hypertension. It is likely that well-controlled hypertension is important to decreasing the incidence of new IPH. IPH is associated with plaque progression despite statin therapy, which suggests that IPH represents an important transition point from stable to unstable plaque morphology (53). In a modern phase II RCT (clinical trial no. NCT00851500), in the placebo group of asymptomatic, stable ASCVD patients with 16–79% carotid stenosis whose modifiable cardiovascular risk factors were well controlled, the presence of IPH at baseline was associated with fast LRNC progression seen at mean of 6.9 months (50). There are no prospective drug trials testing the ability of any lipid-lowering therapies to decrease IPH and/or TPV. There is some anecdotal evidence demonstrating that IPH and TPV can decrease with very intensive lipid lowering therapy, i.e., high intensity statin without or with PCSK9i (51,54) (Figure 4). Given the continuously increasing evidence of IPH as a significant predictor of carotid plaque progression and future adverse vascular events, trials aimed at targeted therapy for IPH represents a significant need.

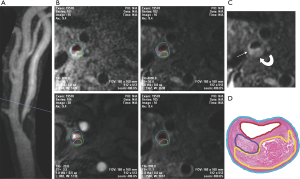

Figure 4 Presence of IPH is associated with plaque growth and increasing stenosis on standard statin therapy that regressed with intensive statin therapy as seen on serial research carotid plaque MR studies. (A) This 76-year-old asymptomatic patient who had been on atorvastatin 10 mg for 3 years presented with a 51% stenosis of the left internal carotid artery on CE MRA. On 3D MPRAGE images, IPH was seen as the focally intense region (open arrows); (B) despite increased statin therapy with atorvastatin 40 mg for 2 years, there was a progression in the size of the IPH (open arrows) and increase in carotid stenosis to 69%; (C) based on the plaque and stenosis progression, statin therapy was increased again to 80 mg of atorvastatin. Over the next 2 to 3 years there was clear regression of the IPH (open arrows) with the carotid stenosis now measuring 58%. *, internal carotid artery lumen. IPH, intraplaque hemorrhage; CE MRA, contrast-enhanced MR angiography; MPRAGE, magnetization-prepared rapid gradient echo. (From DeMarco JK, Spence JD. Plaque Assessment in the Management of Patients with Asymptomatic Carotid Stenosis. Neuroimaging Clin N Am 2016;26:111-27 with permission.)

Conclusions

We have reviewed the mounting evidence that various plaque features such as LRNC, thin/ruptured FC and IPH are readily identifiable on MRI and provide improved risk stratification information beyond simple carotid stenosis measurements. In particular, IPH is relatively simple to detect and measure with routine clinically available MRI; it is associated with continued plaque growth despite statin therapy; and it is associated with increased risk of future strokes. There exists a subpopulation of clinically stable ASCVD patients whose carotid plaque contains IPH despite maximum tolerated intensive statin therapy. MRI can reclassify these stable ASCVD patients without clinical very high-risk features into an imaging-defined very-high risk group who may benefit from very intensive lipid-lowering therapy including PCSK9i to lower LDL-C <50 mg/dL. There is an urgent need to design and implement a blinded imaging endpoint RCT to compare guideline-based lipid-lowering treatment with very intensive lipid-lowering treatment including PCSK9i in a population of clinically stable ASCVD patients who harbor very-high risk MR imaging features of IPH. Both arms of this study will also need to meet current ACC/AHA guidelines for management of hypertension with blood pressure <130/90 mmHg. MR imaging may be able to identify a group of stable ASCVD patients who are being undertreated medically by current guideline-based therapy. The prospective study could use a simple, rapid, robust, non-contrast MPRAGE MRI to identify IPH, with primary imaging outcome defined as regression in TPV. This prospective imaging surrogate RCT would test the hypothesis that the deleterious plaque progression effects of IPH could be slowed or reversed by very-intensive lipid-lowering therapy. The long-term goal is to use IPH imaging to inform treatment and decrease major adverse cerebrovascular events.
