PET/MRI of atherosclerosis
Review Article on Advanced Imaging in The Diagnosis of Cardiovascular Diseases

PET/MRI of atherosclerosis

Mueez Aizaz1,2, Rik P. M. Moonen1,2, Jochem A. J. van der Pol1, Claudia Prieto3,4, René M. Botnar3,4, M. Eline Kooi1,2

1Department of Radiology and Nuclear Medicine, Maastricht University Medical Center, Maastricht, The Netherlands; 2CARIM School for Cardiovascular Diseases, Maastricht University, Maastricht, The Netherlands; 3School of Biomedical Engineering and Imaging Sciences, King’s College London, London, UK; 4Escuela de Ingenieria, Pontificia Universidad Catolica de Chile, Santiago, Chile

Contributions: (I) Conception and design: M Aizaz, RPM Moonen, ME Kooi; (II) Administrative support: None; (III) Provision of study materials or patients: None; (IV) Collection and assembly of data: None; (V) Data analysis and interpretation: None; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

Correspondence to: Prof. Dr. M. Eline Kooi. Department of Radiology and Nuclear Medicine, Maastricht University Medical Center, Universiteitssingel 50, level 1, room 1.328, P. O. Box 5800, 6202 AZ Maastricht, The Netherlands. Email: eline.kooi@mumc.nl.

Abstract: Myocardial infarction and stroke are the most prevalent global causes of death. Each year 15 million people worldwide die due to myocardial infarction or stroke. Rupture of a vulnerable atherosclerotic plaque is the main underlying cause of stroke and myocardial infarction. Key features of a vulnerable plaque are inflammation, a large lipid-rich necrotic core (LRNC) with a thin or ruptured overlying fibrous cap, and intraplaque hemorrhage (IPH). Noninvasive imaging of these features could have a role in risk stratification of myocardial infarction and stroke and can potentially be utilized for treatment guidance and monitoring. The recent development of hybrid PET/MRI combining the superior soft tissue contrast of MRI with the opportunity to visualize specific plaque features using various radioactive tracers, paves the way for comprehensive plaque imaging. In this review, the use of hybrid PET/MRI for atherosclerotic plaque imaging in carotid and coronary arteries is discussed. The pros and cons of different hybrid PET/MRI systems are reviewed. The challenges in the development of PET/MRI and potential solutions are described. An overview of PET and MRI acquisition techniques for imaging of atherosclerosis including motion correction is provided, followed by a summary of vessel wall imaging PET/MRI studies in patients with carotid and coronary artery disease. Finally, the future of imaging of atherosclerosis with PET/MRI is discussed.

Keywords: Atherosclerosis; hybrid imaging; PET/MRI; vascular; vulnerable plaque


Submitted Dec 09, 2019. Accepted for publication Feb 05, 2020.

doi: 10.21037/cdt.2020.02.09


Introduction

Atherosclerosis is characterized by the formation of plaques in arterial walls (1). These atherosclerotic plaques can cause narrowing of the arterial lumen, reducing the amount of oxygen-rich blood reaching the organs, and in case of severe luminal stenosis, cause perfusion defects. More importantly, these plaques can rupture and cause thrombus formation and embolization, which can result in myocardial infarction or stroke (1).

Cardiovascular diseases (CVDs) are the number one cause of death globally. Of the 18 million people who died from CVDs in 2016, 85% died from a heart attack or stroke (2). Apart from the mortality and morbidity, CVDs are also a huge economic burden. The global costs for CVDs are estimated to rise from US $863 billion in 2010 to US $1,044 billion in 2030 (3).

Numerous factors such as increased levels of low-density lipoproteins (LDL), elevated blood pressure, higher levels of hemostatic factors, family history of CVD, gender (4) unhealthy diet, lack of exercise and smoking (5) have been recognized as risk factors for the development of atherosclerosis.

Atherosclerotic plaques most often develop in regions with arterial damage, curvatures or bifurcations with disturbed blood flow. The wall shear stress exerted by blood flow in these regions is decreased. Endothelial cells exposed to lower wall shear stress are nonuniformly shaped, resulting in poor cell to cell contact (6,7), making these sites more susceptible to LDL extravasation across the endothelial layer. The deposited lipoproteins undergo oxidative modification in the intimal layer, inducing an inflammatory response (8). Monocytes from the lumen and smooth muscle cells (SMCs) also migrate to the intimal layer. The oxidized LDL accumulates in monocytes-derived macrophages, transforming them into foam cells. Foam cells undergo apoptosis and form a lipid-rich necrotic core (LRNC). SMCs in this pro-inflammatory and hyperlipidemic environment produce extracellular matrix which forms the fibrous tissue of the plaque including the fibrous cap overlying the LRNC. Metabolic activity from macrophages in the intimal layer creates an increased oxygen demand. This state of hypoxia triggers angiogenesis (9). New microvessels grow from the adventitia into the plaque to supply oxygen and other nutrients to the developing lesion (9,10). These microvessels have poor structural integrity and blood-derived inflammatory cells can easily leak through the endothelial cell layer further contributing to plaque inflammation. The immature microvessels have also been suggested to contribute to intraplaque hemorrhage (IPH) (11), although it was recently shown that plaques with IPH show less leaky plaque microvessels (12). Micro-calcifications arising from extracellular vesicles from macrophages and SMCs (13,14) can also be found in the developing atherosclerotic plaque.

A plaque prone to rupture is referred to as a vulnerable plaque. A vulnerable plaque is characterized by the presence of a large LRNC, inflammation, microvasculature, IPH, and a thin or ruptured fibrous cap (15). Plaque rupture is the underlying cause in approximately 60% of sudden coronary deaths (16) and approximately 20% of ischemic strokes (17). For patients with carotid artery disease, the onset of cerebrovascular symptoms and degree of stenosis are the main deciding factors to select the appropriate treatment. A stenosis of <50% is categorized as mild, 50% to 69% as moderate and 70% to 99% as severe according to NASCET criteria (18). Based on clinical trials performed in the 1990’s, for symptomatic patients with 50% or higher stenosis, the number of patients needed to undergo carotid revascularization to prevent one ipsilateral stroke in 5 years is 9 for men versus 36 for women (19). Studies have shown that apart from degree of stenosis, other vulnerable plaque components can be used as independent predictors of cerebrovascular events (20-23). A recent meta-analysis by Schindler et al. showed that the presence of IPH in carotid plaques is an independent risk predictor for ipsilateral ischemic stroke in both symptomatic and asymptomatic patients that is stronger than any known clinical risk factor (20).

Non-invasive imaging provides tremendous opportunities to identify vulnerable plaques (24-26). Magnetic resonance imaging (MRI), with its superior soft tissue contrast is ideal to identify vulnerable plaque components, although this is still challenging for coronary plaques. A meta-analysis by Gupta et al. (23) found that IPH, LRNC and thin or ruptured fibrous cap as determined by MRI, demonstrated a hazard ratio of 4.59 [95% confidence interval (CI), 2.91–7.24], 3.00 (95% CI, 1.51–5.95), and 5.93 (95% CI, 2.65–13.20) respectively, for future stroke or transient ischemic attack. Positron emission tomography (PET) with radiolabeled tracers can visualize the molecular changes that occur in a plaque. Marnane et al. (27) and Kelly et al. (21) showed that 18F-FDG uptake on PET can independently predict recurrent stroke. The development of hybrid PET/MRI have opened new avenues for early diagnosis, improved risk stratification and treatment evaluation of patients with atherosclerosis.

The aim of this paper is to review the current status and future potential of hybrid PET/MRI of atherosclerotic plaques. The advantages and disadvantages of different types of hybrid PET/MRI systems are summarized. Technical developments which can further improve cardiovascular PET/MRI are discussed. An overview of clinical PET/MRI studies in patients with coronary and carotid artery disease is given. Finally, we discuss the future potential of PET/MRI for imaging atherosclerosis.


PET, MR and PET/MRI

MRI

MRI is based on magnetic properties of protons. When a patient is shifted into the scanner, a small net magnetization will arise in the patient in the direction of the external magnetic field of the MRI system. This net magnetization can be manipulated using radiofrequency (RF) pulses in combination with magnetic field gradients. After changing the net magnetization with an RF coil, relaxation of the net magnetization back to equilibrium will occur and the change in transversal magnetization is measured with an RF coil. These relaxation processes, i.e., T1 (longitudinal direction) and T2 relaxation (transversal direction), can be used to generate T1 weighted (T1w) or T2 weighted (T2w) images. Numerous MRI pulse sequences have been developed to optimize the signal, contrast or to shorten the scan time (28).

PET imaging

In PET imaging, patients are injected with a radiolabeled tracer, which emits positrons. A positron subsequently annihilates with an electron producing two photons moving in the opposite direction, which are detected by the PET detectors, creating an image of the tracer concentration inside the patient. As the annihilation photons pass through different tissues on their way to the PET detector, they get attenuated. Photon attenuation can cause severe artifacts in PET images and therefore, needs to be corrected. Attenuation correction is performed using attenuation maps. These maps represent the attenuation coefficients (µ) of different tissues. Standalone PET detectors use a transmission source with known activity to create an attenuation map (29).

Commonly, PET images are quantified by calculating the standard uptake value (SUV) which is the ratio of activity concentration of a region of interest (ROI) to the whole-body activity concentration. Target to background ratio (TBR), which is the SUV in the tissue of interest normalized to blood-pool activity, is also used for quantification of PET images (30). Based on the temporal resolution of PET detectors, PET scanners can have time-of-flight (TOF) capability, which allows the use of the time interval between the detection of the two annihilation photons to improve the estimation of where on the line of response the annihilation occurred. This improves the signal to noise ratio (SNR) and spatial resolution of the PET images (31,32).

Sequential vs. simultaneous PET/MRI

Technical details about the development of PET/MRI systems have been previously reviewed (33). A major challenge in the development of hybrid PET/MRI systems was the functioning of the photomultiplier tubes (PMTs) in the strong magnetic field from the MRI (34). The first solution to this problem was the sequential PET/MRI approach with a bed that moves between the PET and MRI system. The distance between the two gantries and extra shielding around the PET components, ensures that the PET detectors are not affected by the strong magnetic field (35). Both systems can be present in the same room or in different rooms (36). This solution is relatively economical since no drastic changes in the design of the scanners is required. Also, PET performance is similar to PET in PET/CT scanners (37). In the two-room approach, attenuation maps are created using CT, whereas in the other approach, attenuation maps are created using MRI. Co-registration of PET and MR images is better than separate PET and MRI scans, but any motion from the patient between the scans can make image fusion difficult. Similarly, involuntary motion such as breathing or cardiac motion can cause misregistration between the two scans. Another disadvantage of this approach is that relatively larger rooms are required to host the scanner (38).

The second approach is an integrated PET/MR scanner, which allows simultaneous PET and MRI scans. The PMTs were replaced by avalanche photodiodes (APD) (39) or silicon photomultipliers (SiPMs) (40), which are not affected by magnetic fields. This approach suffers from even less misregistration errors. MRI-based motion information can be used for PET motion correction as well. Simultaneous scans also mean reduced scan time and thus more comfort for the patient. The SiPM based PET detectors have superior time resolution (0.4 ns) (34) enabling TOF PET capability (41).

Attenuation correction for PET in PET/MRI

MR based attenuation correction in PET/MRI has been comprehensively reviewed by Mehranian et al. (42). Attenuation maps for the reconstruction of PET images were another challenge towards PET/MRI being widely accepted for clinical use. As contrast in CT images is based on differences in photon attenuation, CT images can be used to create attenuation maps (43). Contrarily, MR images are based on proton density and relaxation times of different tissues, and so cannot be directly used for creating attenuation maps. Additionally, in MRI scans it is challenging to differentiate between bone (high attenuation) and air (low attenuation). The field of view (FOV) of the MRI scanner in the transverse plane is typically smaller than the PET FOV, which can cause truncation artifacts. This truncation occurs in the off-center regions, such as the arms besides the body. Arms are a source of attenuation and need to be considered in the generation of attenuation maps. A common approach to generate attenuation maps based on MR images is using an MRI Dixon sequence to create water and fat-based images, which are then pixelwise segmented into air, lung, fat and soft tissue. Linear attenuation coefficients are assigned to each tissue class (44). To visualize bones (short T2 times) ultrashort echo time (UTE) (45) and zero echo time (ZTE) (46) sequences can be used. One approach to counter truncated MR-based attenuation correction maps, is to use B0 homogenization using gradient enhancement (HUGE) (47). This technique utilizes an optimum readout gradient to compensate for B0 inhomogeneities and gradient non-linearities. Using this technique, an increase of up to 60 cm in FOV, and a change of up to 30% in SUV was reported (48). Template-based attenuation correction technique utilizes an MR image as template and a co-registered PET attenuation template generated from transmission scans. Using non-linear registrations, the MR template is first registered to the MR image of the patient and then the same registrations are used to transform the PET attenuation template into an attenuation map (36). The atlas-based approach uses an atlas with MR and matching CT images. The CT images are used to generate an attenuation atlas at 511 keV. The MR images from the atlas are registered to the MR images of the patient under observation and the same transformation is applied to the CT based attenuation atlas. These transformed pseudo-CT images can be used as an attenuation map for the patient to reconstruct PET images. Any anatomical anomalies in the patient and their effects on attenuation are not taken into account with this method (49). Another approach exploits the fact that PET data contains both attenuation and activity information, and thus creates an attenuation map based on only PET data using a maximum likelihood attenuation and activity (MLAA) algorithm (50). One of the many uses of artificial intelligence (AI) based techniques in the imaging domain is image transformation, for instance transformation of MR images into pseudo CT images (51,52). Considering the creation of pseudo CT attenuation maps or MLAA µ-maps from MR images as an image transformation problem, deep learning presents a viable solution to create attenuation maps from different input sources (MR images, MLAA µ-maps, non-attenuation corrected PET images) (53-58).

RF-coils are invisible on MR images but are a source of PET photon attenuation (59,60). The attenuation by the RF-coils needs to be considered when creating attenuation corrected PET images. For rigid coils such as the head and neck coil, CT or transmission-based attenuation maps can be used. However, surface coils such as the dedicated carotid coils are usually flexible and don’t have a fixed position, thus using a standard attenuation map is not straightforward. One solution is to use markers to locate the position and shape of the coil in MR images and subsequently use non-rigid transformations to transform a CT based attenuation map of the coil (61). Another solution is to use dedicated PET/MRI coils which reduce photon attenuation for the ROI by making design changes and less attenuating materials (62,63).

Numerous oncology studies have compared the diagnostic performance of PET/MRI with PET/CT. Consensus among these studies is that despite the differences in attenuation correction methods, statistically significant strong positive correlations between SUV measurements from PET/MR and PET/CT exist (64-66). It is important to note here that a significant underestimation (67) and overestimation (68) of SUV values on the PET/MRI have been reported. A limitation of these studies is that the order in which the PET/CT and PET/MRI examination were performed was not randomized. The SUV values are also affected by pharmacokinetics, i.e., biological uptake and clearance, differences between scanner technologies, data processing algorithms, type of attenuation correction used, PET acquisition times and the time between tracer injection and the second scan (67,69,70).


Cardiovascular motion correction or compensation

MRI

For a detailed review on cardiac and respiratory motion and the techniques used to minimize or correct for motion, we refer to the following reviews (71-75). Vessel wall imaging requires sub-millimeter spatial resolution. Consequently, slight motion during image acquisition can already cause motion artifacts. Motion correction is especially important for coronary imaging. Apart from their small size, these vessels are constantly in motion because of breathing and cardiac motion. Carotid vessel wall MRI can also suffer from motion artifacts due to the pulsating motion of the arteries, effects of swallowing and patient motion.

The scan time to perform high spatial resolution coronary artery imaging is too long to be performed within a single breath-hold for patients with coronary artery disease, which is why free breathing techniques are preferred (73). Free breathing acquisitions can be acquired by measuring the respiratory signal with an external device (respiratory bellows) and performing prospective or retrospective respiratory gating (76). Another approach is the use of 1-dimensional (1D) MR navigators, positioned on the liver-diaphragm interface to perform respiratory gating and tracking (77). This 1D navigator measures the position of the liver-diaphragm interface, based on which the window with the least respiratory motion is selected. A major limitation of the 1D diaphragmatic navigator in combination with respiratory gating is that it leads to long and unpredictable scan times, due to low scan efficiency. Several self-navigation and image-navigator based techniques have been proposed to achieve 100% scan efficiency (no gating, no data rejection). 1D self-navigation techniques extract respiratory motion information often from the repeatedly acquired k-space center line. The Fourier transform of this signal, referred to as superior inferior (SI) projection, is used for translational respiratory motion tracking. Each projection acquired is then compared to a chosen reference projection to estimate and to retrospectively correct for the SI position of the heart over time (78). Self-navigated signals estimate the motion from projection data that include static tissues and thus may affect the accuracy of the motion signal. 2D and 3D image navigators (79-81) separate static and moving tissues and enable motion estimation/correction in multiple dimensions. These approaches can be self-gated (employing the startup echoes of the main acquisition) or based on acquiring low spatial resolution images every heartbeat before cardiac MR acquisition and have been used to correct for 2D/3D translational motion prospectively and retrospectively. These approaches can be combined with bin-to-bin non-rigid motion correction (incorporated directly in the reconstruction) (82-84) or respiratory-resolved reconstruction (85,86) to account for the complex motion of the heart. Cardiac motion is commonly tackled using electro-cardiogram (ECG)-based gating. The ECG signal is used to identify the region of the cardiac cycle with the least motion, which is where the acquisition window is placed. This duration is generally not long enough to acquire the entire k-space in one go; therefore, the acquisition is done in a segmented fashion over multiple cardiac cycles. Alternatively, with free running techniques, acquisition is not performed in any particular phase of the cardiac cycle but throughout. The ECG signal is recorded simultaneously, to retrospectively sort the k‐space readouts into different bins for reconstruction (87). An alternative approach is to estimate cardiac phases from the self-gating signal directly as has been shown in several studies (88,89).

PET

Detailed information on different sources of motion and how to minimize, characterize and compensate them for both PET and MRI can be found in reviews by Catana et al. (72) and by Munoz et al. (74). Like MRI, respiratory and cardiac motion are the two main sources of motion in cardiovascular PET imaging. Deriving the respiratory signal from an external device or from PET counts (90) allows binning of the PET data. Similarly, using the ECG signal, the cardiac cycle can also be divided into multiple phases. Individual bin data can be reconstructed, and then transformed using rigid or non-rigid transformations to a reference position, before being averaged into one static image. This approach is called the reconstruct-transform-average approach (74,91). Another approach is the motion-compensated image reconstruction, where the transformations are incorporated in the PET system model, resulting in motion-corrected PET images after reconstruction (92,93).

PET/MRI

Simultaneous PET/MRI provides a unique opportunity to apply MRI-based motion correction on both MRI and PET images. Munoz et al. (94) utilized a non-rigid respiratory motion-compensated CMRA approach (based on 2D iNAV for respiratory binning) to correct for respiratory motion induced cardiac motion in the simultaneously acquired PET and MR data. For the MR images, on average the visible length of the right coronary artery and left anterior descending artery increased by 45.53% and 75.45%, and sharpness by 56.44% and 51.11% respectively, when applying the proposed technique compared to no motion correction (Figure 1). For PET images the proposed technique outperformed no motion correction in terms of noise and mean SUV and outperformed a gated approach in terms of noise (Figure 2).

Figure 1 Coronary images from an oncology patient showing the left anterior descending artery and right coronary artery with motion correction (MC), only translational motion correction, and translational motion correction and non-rigid motion correction. Improvements in the visualization of the vessels are observed when applying translational MC, and further improvements are observed with translation and non-rigid MC. [Images reproduced with permission from Munoz et al. (94)].
Figure 2 Cross-sectional images of the myocardium for an oncology patient showing images with non-motion correction (NMC), gated, and motion-corrected PET images, alongside with profiles across the myocardium. Motion correction improves the sharpness of the myocardium compared to NMC and reduces noise compared to gated images [Images reproduced with permission from Munoz et al. (94)].

Robson et al. used MR images to create cardiac and respiratory motion models, to correct for respiratory and cardiac motion in PET images (90). The motion-corrected PET images were compared with non-motion-corrected-non-gated and dual gated (respiratory and cardiac gated) PET images. The TBR and contrast to noise ratio (CNR) were significantly larger for motion-corrected PET (2.8±0.9, 21±22) compared to non-motion-corrected-non-gated PET (2.4±0.9, P=0.0001; 15±13, P=0.02), while TBR was lower and CNR greater compared to double-gated PET (3.2±0.9, P=0.04; 6±3, P=0.004). Küstner et al. used an MR self-navigation signal to train the respiratory signal which spanned the entire PET exam to serve as a more reliable respiratory motion estimate compared to the original respiratory signal from the external sensor. Using this method, the author reported an improvement of 22% in quantification and of 64% in delineation of malignant lesions on PET images after motion correction (95).


Imaging of carotid atherosclerosis

MRI

For a detailed description of identification of plaque composition with MRI and for expert recommendations on MRI protocols for carotid vessel wall imaging, we refer to a recent white paper (26). The main components of plaque vulnerability can be identified using a combination of different MRI contrasts (96-99). Figure 3 shows an example of multi-contrast MRI of a patient with a carotid plaque. IPH is rich in methemoglobin which acts as an intrinsic T1 relaxation time shortening agent, so that IPH appears bright when visualized with a hyper T1 weighted (T1w) sequence (Figure 3A) such as a three-dimensional magnetization-prepared rapid acquisition gradient echo (MP-RAGE) sequence (96,100-102). A comparison between the performance of different T1w sequences [MP-RAGE, 3D TOF and 2D fast spin echo (2D-FSE)] demonstrated that MP-RAGE has the highest sensitivity and specificity for detecting IPH (103,104). Calcifications can be identified as regions with a hypointense signal in TOF, T1w, proton density weighted (PDW) and T2w images (Figure 3D) (105). LRNC is characterized as a region within the bulk of the plaque that does not enhance on black blood T1w contrast-enhanced MR images (CE-MRI) (Figure 3E) (106). The fibrous cap is scored as thick, when a continuous region with contrast enhancement separates the LRNC from the lumen. When the LRNC extends to the lumen, fibrous cap is scored as thin or ruptured (Figure 3E) (107,108). CE-MRI improves the contrast between the LRNC and the fibrous cap (109). Neo-vascularization is another vulnerable plaque component which can be visualized using pharmacokinetic modeling of dynamic contrast-enhanced MRI (Figure 4) (111,112). Plaque burden (plaque volume normalized to the total vessel volume) requires high contrast between the plaque and the lumen, which can be achieved using black blood T1w MRI sequences (113).

Figure 3 Co-registered (A) T1w TFE, (B) TOF, (C) T2w TSE, (D) pre- and (E) post-contrast T1w TSE images of a plaque in the internal carotid artery; (F) displays the delineation of plaque components and the inner and outer vessel wall: red = lumen; green = outer vessel wall; yellow = LRNC; orange = ring of calcifications; remaining vessel wall area = fibrous tissue. Hyperintense signal in A, and high signal in B (with respect to surrounding muscle tissue) in the bulk of the plaque is indicative for IPH (asterisk in T1w TFE and TOF images). A ring of hypointense signal, indicative for calcifications, is observed in all weightings [orange in (F)]. The lipid-rich necrotic core (yellow contour) can be identified as a region within the bulk of the plaque which does not enhance on black blood T1w MRI [red asterisk in (E)]. The fibrous cap can be recognized as a region with signal enhancement on the post-contrast images between the lipid-rich necrotic core and the lumen. This region with enhancement is interrupted, indicating a thin or ruptured fibrous cap [arrow in (E)]. [Images reproduced with permission from Kwee et al. (22)].
Figure 4 Maps generated from images acquired 1 week apart of a 70-year-old male. Parametric maps are overlaid on anatomic MR images, and voxel Ktrans values which reflect microvascular flow, permeability, and surface area, are color coded from 0 to 0.6 min-1. The parametric maps that are acquired on two different days are very similar indicating a high scan-rescan reproducibility. The necrotic core exhibits low Ktrans values at the bulk of the plaque, while the highly vascularized adventitia at the outer rim demonstrates high Ktrans values. Another region of higher Ktrans values is observed near the inner rim of the plaque. [Reproduced, with permission, from Gaens et al. (110)].

Currently, a carotid MRI exam to visualize different plaque components takes approximately 20–30 minutes. Multicontrast sequences allow the visualization of different vulnerable plaque components with a single acquisition and tremendously reduce scan time. One such sequence, simultaneous non-contrast angiography and intraplaque hemorrhage (SNAP), acquires hyper T1w black blood images and bright blood images with a single scan. Two separate studies of 13 and 54 patients with carotid plaques, compared the performance of SNAP with MP-RAGE and found that there was a moderate to very good agreement between the two sequences for the identification of IPH (κ=0.82, P=0.141 and κ=0.511, P=0.029, respectively), although the area of IPH detected by SNAP was significantly larger compared to MPRAGE in the latter study (17.9±18.2 vs. 9.2±10.5 mm2, P<0.001). A large study comparing SNAP with histology as gold standard still needs to be carried out. The degree of stenosis on the SNAP bright blood images was significantly correlated with that measured by TOF MR angiography (intraclass correlation coefficient =0.96, P<0.001), but validation with a clinical gold standard such as contrast-enhanced MR angiography (CE-MRA) is still lacking (114,115).

Another multicontrast sequence, multi-contrast atherosclerosis characterization (MATCH) (116), acquires three different contrasts (hyper T1w black blood, grey blood and T2w black blood). In a study with 53 patients, MATCH showed results comparable to a conventional multicontrast protocol (TOF, T1w, T2w) in quantitative measures of luminal area, outer wall area, mean area of LRNC and loose matrix, while MATCH showed a larger mean area of IPH and calcifications. The performance of MATCH was not compared to a hyper T1w sequence such as MP-RAGE. In the same study, using carotid endarterectomy specimens from 13 patients as a reference, MATCH performed as well as the conventional sequences (TOF, T1w, T2w) in detecting IPH, LRNC, loose matrix, and calcifications with an acquisition time of only 2 ½ minutes (117). MATCH needs to be validated with histology in larger studies.

PET

For detailed information on PET imaging of atherosclerosis, we refer to the following reviews (118-120). For imaging carotid atherosclerosis, 18-fluorodeoxyglucose (18F-FDG), a glucose analog, is often used as a surrogate marker for inflammation (Figure 5) (121-123). 18F-FDG is taken up non-specifically by all cells that consume glucose including skeletal muscles, which can cause hinderance in the visualization of tracer uptake in the vessel wall. Other tracers, including 64Cu-DOTATATE (124), 68Ga-DOTATOC (125), 18F-Choline (126) and 68Ga Pentixafor (127), which are more specific for plaque inflammation, have been explored, but still need to be validated in larger studies. 18-fluorine sodium fluoride (18F-NaF) has been used to identify active calcification showing the potential to visualize micro-calcifications which are too small to be seen on MRI or CT (128,129). HX4 (130) is another tracer, used to target hypoxia.

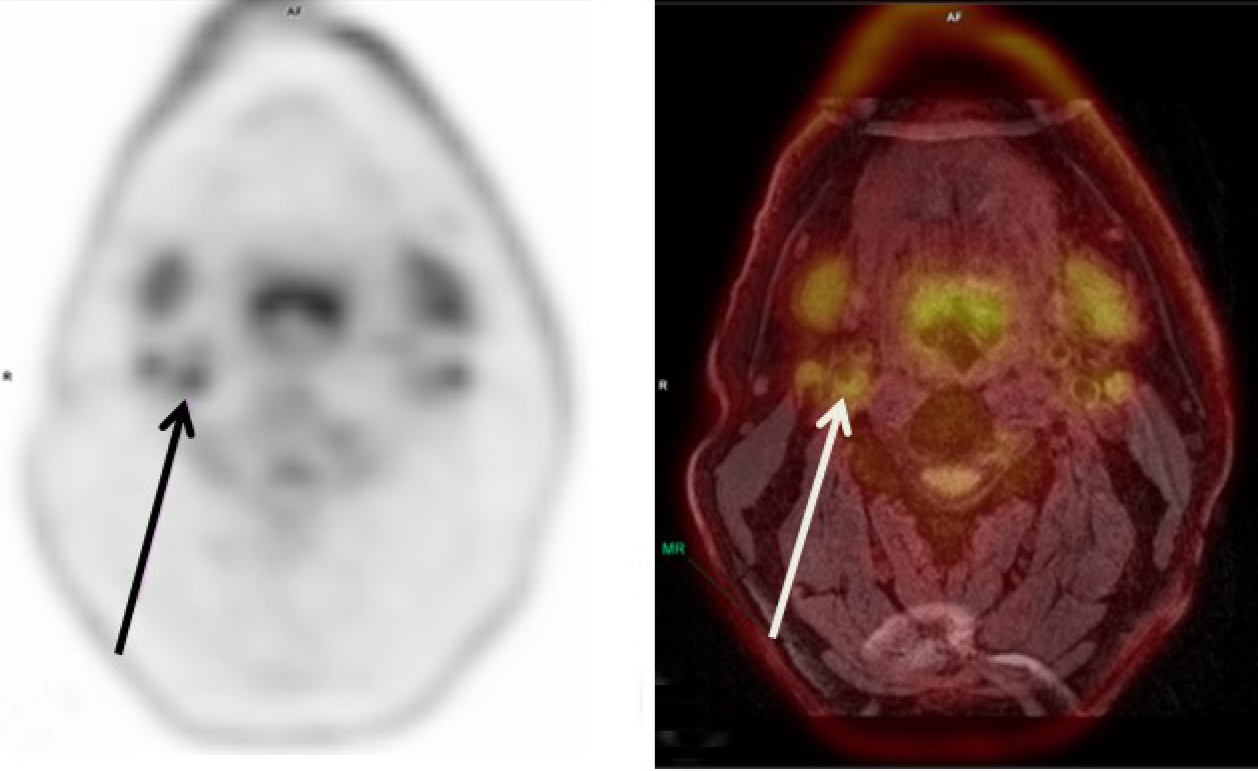

Figure 5 (A) 18F-FDG PET image of the neck (left) of a patient with a carotid plaque; (B) a colour overlay of the PET image as displayed in (A) on the corresponding MR image. Anatomical information from MRI confirms 18F FDG uptake in the symptomatic carotid plaque (arrow), while hardly any uptake is shown in the contralateral asymptomatic carotid artery.

Carotid PET/MRI patient studies

An overview of PET/MRI studies in patients with carotid and coronary artery disease is provided in Table 1. In carotid PET/MRI studies featured here, motion correction techniques were not utilized as carotid arteries are subject to only slight motion and five (124,127,133-135 of the seven studies used the Dixon sequence to create MR-based PET attenuation maps. Fernandez-Friera et al. (131) quantified vascular inflammation using 18F-FDG sequential PET/MRI in femoral, aorta, carotid and iliac arteries in 755 individuals with known plaques detected during pre-screening with ultrasound and CT. A free breathing, 3D T1w spoiled gradient echo sequence was used for the whole-body MR-based attenuation maps using three tissue classifications (soft tissue, lung and air). PET/MRI facilitated the acquisition of T1w and T2w black blood MR images to visualize the vessel wall and to classify plaques as lipid-rich, fibrous or mixed. Arterial inflammation was scored qualitatively as increased vascular 18F-FDG uptake by scoring the presence and number of locations with 18F-FDG uptake. SUVmax and TBRmax values at these locations were calculated. Fused PET/MR images were used to determine which plaques showed inflammation (18F-FDG uptake) and SUVmax and TBRmax was calculated for each plaque. The authors found arterial inflammation in 48.2% of the population and plaques on MRI in 90.1% of the population. Plaques with inflammation showed higher SUVmax and TBRmax values (P<0.001). They also reported that most uptake was found in plaque-free arterial segments on MRI (61.5%), suggesting arterial inflammation may be a precursor of atherosclerosis.

Table 1
Table 1 Description of patient studies on plaque imaging with PET/MRI
Full table

Bachi et al. (132) used 18F-FDG simultaneous PET/MRI to assess carotid inflammation and plaque burden in individuals with cocaine use disorder (iCUD), healthy volunteers and individuals with cardiovascular risk factors. TOF MRI was acquired to delineate the vessel lumen. A 3D SPACE sequence was used to acquire black blood images to quantify lumen, wall area and wall thickness. PET attenuation was corrected using a template-based method. The authors showed that iCUD and healthy controls showed mild to moderate plaque inflammation (1.6> TBR <3), whereas the iCUD group showed the thickest carotid vessel wall.

Hyafil et al. (133) evaluated the morphological and functional features of non-stenotic carotid lesions in patients with cryptogenic stroke using 18F-FDG simultaneous PET/MRI. The MRI sequence protocol included 3D TOF angiography, T2w and pre- and post-contrast T1w sequences. The prevalence of complicated plaques on MRI (AHA lesion type VI) was significantly higher in the ipsilateral carotid artery as compared to the contralateral side (39% vs. 0%; P=0.001), indicating that the plaque type was related to the clinical symptoms. Complicated atherosclerotic plaques were associated with higher 18F-FDG uptake (TBR =3.43±1.13 vs. 2.41±0.84, P<0.001).

Pedersen et al. (124) demonstrated the feasibility of 64Cu-DOTATATE as a molecular tracer of atherosclerotic plaque activity using simultaneous PET/MRI. To determine arterial wall thickness T1w, T2w and PDW MRI was acquired while TOF images were used to visualize luminal stenosis. SUVmean values were calculated to quantify tracer uptake. The authors showed that the uptake correlated independently (P=0.031) with the CD163 positive macrophages. No correlation was found between 64Cu-DOTATATE uptake and plaque burden as assessed on MRI (P=0.116).

Li et al. (127) used 68Ga Pentixafor tracer which targets macrophages using simultaneous PET/MRI. TOF magnetic resonance angiography was performed for grading carotid luminal stenosis. The tracer showed high arterial uptake (TBRmax >1.7) in patients with cardiovascular risk factors with the mean TBRmax value of high-risk patients being significantly higher (TBRmax: 1.9±0.3 vs. 1.7±0.2, P<0.05 high versus low risk, respectively).

Li et al. (134) evaluated the reliability and accuracy of measuring 18F-FDG uptake on PET/MRI compared to PET/CT in 34 patients with carotid atherosclerotic plaques. A moderate correlation between carotid SUVmax on PET/MRI versus PET/CT was observed (Spearman’s r=0.67, P<0.01). The SUVmax was significantly lower on PET/MRI than on PET/CT (2.3±0.6 vs. 3.1±0.6; P<0.01). TBRmax of plaque lesions was similar on PET/MRI and on PET/CT (2.2±0.3 vs. 2.2±0.3; P=0.4) and showed a good mutual correlation (Spearman’s r=0.73, P<0.01). In this study, the patients were scanned first with PET/CT, followed by PET/MRI.

Ripa et al. (135) compared simultaneous PET/MRI to PET/CT for imaging the carotid arteries in patients with increased risk of atherosclerosis using 18F-FDG. 3D TOF MR angiography was performed to determine luminal stenosis. Dark blood T1w, T2w and proton density weightings were also acquired to visualize the arterial wall. They showed that the mean difference for SUVmean and SUVmax was −0.18 (P<0.001) and −0.14 (P<0.001), respectively, showing small but significantly lower values with PET/MRI. In this study the patients underwent a PET/MRI first followed by a PET/CT.


Coronary vessel wall imaging

MRI

Several studies have shown the efficacy of coronary MR angiography (CMRA) to detect coronary artery stenosis (138-140). Due to the tortuous nature and constant movement of the coronary arteries, CMRA is usually performed with 3D sequences and respiratory motion compensation while gadolinium (Gd)-based contrast agents can be used to further improve blood to myocardium contrast for improved vessel visualization (141). Contrast-enhanced coronary vessel wall imaging has been shown to be promising for the identification of the culprit lesion, since these lesions show pronounced contrast uptake in patients with acute myocardial infarction (142). Non-contrast black blood MRI has been used to visualize coronary vessel lumen and wall (143). High intensity signal (HIS) plaques can be identified on heavily T1w MR images (144-146). This hyper intense signal is attributed to IPH and/or luminal thrombosis (144,145,147) and can be used as a predictor for adverse coronary events (hazard ratio: 3.96; 95% confidence interval: 1.92 to 8.17; P<0.001) (148). MRI sequences used to visualize coronary vessel wall have shortcomings such as incomplete coverage of the heart, poor anisotropic spatial resolution, and the requirement for an additional anatomic reference scan of the lumen that can lead to misregistration errors (149).

To counter these issues, multicontrast sequences have been developed for coronary artery imaging.

A novel sequence, coronary atherosclerosis T1w characterization with integrated anatomical reference (CATCH), allows the acquisition of T1w dark blood and anatomical reference bright blood images with a single sequence. Hyperintense plaques on CATCH images were positively associated with high risk plaque features on invasive angiography and optical coherence tomography (150).

Bright- and black-blood phase sensitive inversion recovery sequence (BOOST) is another multicontrast sequence for coronary plaque imaging that acquires bright and black blood images with a single sequence, employing preparation pulses to improve the contrast of anatomical reference bright blood images (151). The feasibility of thrombus visualization with BOOST was shown in an ex-vivo pig heart.

PET

The intrinsic low spatial resolution of PET combined with cardiac and respiratory motion, make coronary artery PET challenging. 18F-FDG and 18F-NaF have been used for the evaluation of atherosclerosis in the coronary arteries (152-154). The high myocardial uptake of 18F-FDG can obscure coronary plaque inflammation. This uptake can be suppressed by consuming a high- fat low-carbohydrate diet and by fasting before the PET exam (155).

Coronary PET/MRI patient studies

Andrews et al. (136) investigated whether quantification of tracer (18F-fluoride) uptake in the aortic valve and coronary arteries differs between PET/CT and simultaneous PET/MR (using both the Dixon and a novel free breathing radial gradient recalled echo (GRE) attenuation correction approach) in 18 patients with aortic stenosis or recent myocardial infarction. A free-breathing radial GRE attenuation correction map was generated (90). In non-stented patients, coronary artery TBRmax was comparable, although slightly higher using GRE attenuation correction PET/MR (1.24±0.27) than PET/CT (1.09±0.19, P=0.03) and Dixon attenuation correction PET/MR (1.09±0.26, P≥0.99).


Future developments

Until now, plaque imaging with PET/MRI has been focused on carotids and coronary arteries with 18F-FDG as the most commonly used tracer. Other vascular beds such as intracranial and peripheral arteries provide opportunities that can be explored with PET/MRI. Novel PET tracers combined with MRI based PET motion correction is a major advantage of PET/MRI. With PET tracers that specifically target particular vulnerable plaque features, motion-corrected PET images ensure increased sensitivity. MR based PET motion correction could help realize the full potential of PET imaging. RF-coils also need to be updated. Coils designed specifically to minimize photon attenuation caused by the coil while maintaining if not improving MR image quality could be the answer to using flexible RF-coils in PET/MRI.

Radiomics is a rapidly growing field which essentially involves extraction of comprehensive quantitative features such shape, size, volume, signal intensity and texture of the ROI. By combining PET with different MRI contrasts, features from the two modalities can be derived, which increase the chance to detect subtle differences in the radiological images which cannot be visualized by human observers. Currently, radiomic feature extraction from PET/MRI is being implemented more in the field of oncology such as for texture analysis from combined PET and CE-MRI to differentiate radiation injury from recurrent brain metastasis (156), to predict recurrence of cervical cancer in patients (157), or to characterize early treatment response in renal cancer (158). PET/MRI based radiomics could aid in risk stratification, evaluation of treatment response and provide new insights into plaque development.

The latest developments in deep learning applications for hybrid imaging are reviewed by Zaharchuk et al. (159). We have already described how deep learning can be used to create PET attenuation maps. Currently, artificially intelligence is being used to denoise images (160), reconstruct MR images with undersampled data (161), image segmentation (162), reduce PET dose (163-165) and predict PET images based solely on MR image input (166). Moving forward, we may expect to see autonomous systems that use PET/MR images to calculate a risk score and act as an assistant to the physician.


Conclusions

Although they are still costly and availability is limited, the clinical acceptance of PET/MRI and the number of installed systems is steadily rising. The combination of superior soft tissue contrast of MRI with molecular imaging by PET and relatively lower radiation dose make hybrid PET/MRI well suited for evaluation of new drugs, therapy monitoring, to gain more insights into factors that contribute to plaque progression and destabilization and for patient risk stratification. Due to its simultaneous nature, the inherent co-registration of the two modalities is superior to other hybrid imaging modalities currently available. This also enables MR-based motion correction of PET data, another advantage of PET/MRI. MR-based attenuation correction algorithms are considered sufficient, at least for clinical interpretation of the images. Additionally, new developments such as PET lucent coils, new reconstruction algorithms such as compressed sensing and deep learning based low-dose PET reconstructions have the potential to improve image quality, reduce scan times, reduce radiation dose and overall improve patient comfort. Concluding, PET/MRI has the potential to become a one stop shop modality for patients with atherosclerosis, but further validation in larger clinical studies is warranted.


Acknowledgments

We thank Dr. Camila Munoz for providing images used in this publication.

Funding: The authors acknowledge the financial support provided by European Union’s Horizon 2020 research and innovation program under the Marie Skłodowska-Curie grant agreement No. 722609. MEK is supported by an Aspasia Grant 015.014.010 from The Netherlands Organization for Scientific Research.


Footnote

Provenance and Peer Review: This article was commissioned by the Guest Editor (Luca Saba) for the series “Advanced Imaging in The Diagnosis of Cardiovascular Diseases” published in Cardiovascular Diagnosis and Therapy. The article was sent for external peer review organized by the Guest Editor and the editorial office.

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/cdt.2020.02.09). The series “Advanced Imaging in The Diagnosis of Cardiovascular Diseases” was commissioned by the editorial office without any funding or sponsorship. Dr. RPMM reports grants from Stichting de Weijerhorst, outside the submitted work; Prof. Dr. MEK reports grants from European Union’s Horizon 2020 research and innovation program under the Marie Skłodowska-Curie grant agreement No. 722609 and a grant from NWO/ASPASIA, during the conduct of the study; grant from Stichting De Weijerhorst, grant from NWO Hestia, outside the submitted work. The other authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy and integrity of any part of the work are appropriately investigated and resolved.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
