Multimodality imaging for the prevention of cardiovascular events: Coronary artery calcium and beyond

Duygu Kocyigit1, Alexandra Scanameo2, Bo Xu1

1Section of Cardiovascular Imaging, Robert and Suzanne Tomsich Department of Cardiovascular Medicine, Sydell and Arnold Miller Family Heart and Vascular Institute, Cleveland Clinic, Cleveland, OH, USA; 2Drexel University College of Medicine, Philadelphia, PA, USA

Contributions: (I) Conception and design: All authors; (II) Administrative support: None; (III) Provision of study material or patients: None; (IV) Collection and assembly of data: D Kocyigit, B Xu; (V) Data analysis and interpretation: All authors; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

Correspondence to: Bo Xu, MD, FACC, FRACP, FASE. Section of Cardiovascular Imaging, Robert and Suzanne Tomsich Department of Cardiovascular Medicine, Sydell and Arnold Miller Family Heart and Vascular Institute, Cleveland Clinic, 9500 Euclid Avenue, Desk J1-5, Cleveland, OH 44195, USA. Email: xub@ccf.org.

Abstract: Atherosclerotic cardiovascular disease (ASCVD) has been the leading cause of death worldwide for more than a decade. Prevention is of utmost importance to reduce related mortality. The innovations in cardiovascular imaging technology, in addition to our improved understanding of coronary atherosclerosis pathogenesis, have resulted in cardiovascular imaging becoming one of the most influential tools for diagnosis and risk stratification in ASCVD. Although numerous publications have emerged on this topic, data that guide routine cardiology clinical practice currently focus on the utility of a limited number of such modalities, namely arterial ultrasonography and computed tomography. Herein, current evidence with respect to the role of multimodality cardiovascular imaging on ASCVD prevention will be reviewed.

Keywords: Multimodality cardiovascular imaging; atherosclerotic cardiovascular disease (ASCVD); prevention; ultrasonography; computed tomography; coronary artery calcium score; magnetic resonance imaging; positron emission tomography


Submitted Nov 29, 2019. Accepted for publication Jan 15, 2020.

doi: 10.21037/cdt-19-654


Introduction

Atherosclerosis is a chronic progressive inflammatory disease that is characterized with fibrous and/or fatty lesion formation in the intimal layer of the arterial wall (1). Although atherogenesis may emerge in any arterial bed, epidemiological data suggest that involvement of the coronary arterial bed by atherogenesis (namely, ischemic heart disease) is the leading cause of mortality worldwide (2).

The concept of “precision medicine” has led to a shift from “population” to a more “personalized” approach (3). When predicted 5-year atherosclerotic cardiovascular disease (ASCVD) risk and observed ASCVD risk were compared in a large-scale study involving 307,591 adults, ASCVD risk score was shown to overestimate cardiovascular (CV) risk in the overall adult population without diabetes, as well as in the sex, ethnic and socioeconomic status subgroups (4), emphasizing the need for additional data in fine tuning of risk estimation. Imaging is one of the tools that can help elucidate the “proof of disease” and therefore, is an essential component of ASCVD prevention.

Imaging for prevention of ASCVD has three main functions: (I) diagnosis of the disease based on arterial wall imaging (in terms of both primary and secondary prevention), (II) ASCVD risk stratification based on multi-level imaging (in terms of both primary and secondary prevention), (III) targeted treatment of atherosclerotic plaques (in terms of secondary prevention). Therefore, imaging has the potential to provide evidence that may guide clinical therapeutic decisions and motivate patient behavior.

This review focuses on the utility of CV imaging for ASCVD prevention with regards to diagnosis and risk stratification. The term coronary artery disease (CAD) is used to define the characteristics of the study population (to demonstrate whether it is a primary or secondary prevention cohort) and the endpoints (such as incident CAD, mortality due to CAD etc.) of the studies presented in this review.


Arterial ultrasonography

Ultrasonography is a traditional imaging modality, yet it may provide clinical diagnostic and prognostic information of utmost importance. Non-invasive ultrasonography of the main arteries (carotid and femoral arteries), as well as invasive intravascular ultrasound (IVUS) of the coronary arteries in diagnosing atherosclerosis, risk stratification and prognosis assessment will be reviewed here.

Carotid artery ultrasonography

Carotid artery ultrasound enables assessment of: (I) plaque presence, (II) plaque burden, (III) plaque texture, (IV) plaque ulcer volume, (V) intima-media thickness (IMT).

Plaque presence

A substudy of the Atherosclerosis Risk in Communities (ARIC) study (5) (n=13,145, individuals with CAD or stroke were excluded from the initial study cohort) showed that carotid plaque presence/absence when added to traditional risk factors (TRFs) had a better performance than TRFs alone for predicting incident CAD events defined as myocardial infarction (MI), coronary revascularization or definite CAD death (5). The area under the curve (AUC) improved to 0.751 (95% CI for the difference in adjusted AUC: 0.006–0.013) from 0.742 with the addition of plaque presence/absence; this improvement was more pronounced in females (AUC: 0.770, 95% CI for the difference in adjusted AUC: 0.005–0.016) than in men (AUC: 0.686, 95% CI for the difference in adjusted AUC: 0.005–0.017). Carotid plaque presence/absence added to TRFs had a better net reclassification index (NRI) compared to TRFs alone (7.7%, 95% CI: 2.3–11.4) (5). Clinical NRI, defined as NRI in the intermediate-risk group, was even higher (17.7%, 95% CI: 10.9–24.7) when carotid plaque presence/absence was added in addition to TRFs (5).

Plaque burden

Plaque burden assessment in the carotid arteries may be made through carotid plaque area measurement in the longitudinal plane and carotid plaque volume measurement.

A study investigated the impact of baseline carotid plaque area on the composite endpoint of MI, stroke and vascular death in 1686 patients followed up at a prevention clinic for a mean duration of 2.5 years (6). Five-year risk of composite endpoint was increased with increasing plaque area quartiles (Q) after adjusting for baseline patient characteristics (RR: 3.5, 95% CI: 1.8–6.7, P<0.001 in Q4; RR: 2.5, 95% CI: 1.4–4.4, P=0.001 in Q3; RR: 1.9, 95% CI: 1.1–3.3, P=0.2 in Q2) (6). 1,085 patients had serial follow-up imaging for carotid plaque area. Patients with plaque progression were more likely to experience the composite endpoint than those with no change in plaque area (RR: 2.1, 95% CI: 1.2–3.6, P=0.005) (6).

Follow-up of the imaging study group of the BioImage Study (A Clinical Study of Burden of Atherosclerotic Disease in an At-Risk Population) (7) (n=5,808 asymptomatic adults) for a median duration of 2.7 years showed that increase in carotid plaque burden was associated with higher cumulative incidence of primary (MI, CV death and ischemic stroke) and secondary (unstable angina, coronary revascularization and all-cause death) major adverse cardiac events (MACE) after adjustment for TRFs (7). The hazard ratios (HR) of increasing tertiles of carotid plaque burden were 0.78 (95% CI: 0.31–1.91), 1.45 (95% CI: 0.67–3.14) and 2.36 (95% CI: 1.13–4.92), respectively for primary MACE (P=0.03) (7). For secondary MACE, HRs of increasing tertiles of carotid plaque burden were 1.11 (95% CI: 0.49–2.53), 1.58 (95% CI: 0.74–3.38) and 2.99 (95% CI: 1.48–6.05), respectively (P=0.01) (7). Significant improvement in NRI was observed with addition of carotid plaque burden on top of TRFs for prediction of both primary (0.23%, 95% CI: 0.05–0.31) and secondary (0.17%, 95% CI: 0.11–0.26) MACE endpoints (7).

Carotid plaque burden assessment using plaque area measurements were then followed with studies highlighting the three-dimensional (3D) volumetric quantification of plaque burden. In The High Risk Plaque BioImage study that examined 6,101 asymptomatic subjects (the imaging study group) (8), when adjusted for TRFs, carotid plaque volume was the imaging modality that had the most strong association with coronary artery calcium score (CACS) (OR for the highest tertile of carotid plaque volume: 4.79, 95% CI: 4.11–5.57, P<0.0001) among other imaging modalities, including carotid IMT and abdominal aortic diameter (8).

Progression in carotid plaque volume was suggested to predict adverse outcomes defined as MI, transient ischemic attack (TIA), stroke and vascular death in a study that included patients with baseline total carotid plaque area: 40–600 m2 (n=349) who were followed-up at a prevention clinic (median: 3.17 years) (9). Progression in total plaque volume, but not total plaque area, was an independent predictor of any adverse event after adjusting for TRFs (P=0.001) (9).

The utility of carotid artery plaque burden assessment for ASCVD prevention with regards to diagnosis and risk stratification based on European guidelines is outlined in Table 1. In the American guidelines, there is no recommendation with respect to carotid artery plaque burden assessment for the purpose of ASCVD risk stratification. Only data regarding carotid artery plaque assessment in the prevention of atherosclerotic disease comes from 2010 AHA (American Heart Association)/ASA (American Stroke Association) guidelines for the primary prevention of stroke (13), which states that screening for asymptomatic carotid artery stenosis is not indicated (Class: III, LOE: B). 2011 ASA/ACCF (American College of Cardiology Foundation)/AHA guidelines on the management of patients with extracranial carotid and vertebral artery disease (14) also does not recommend carotid duplex ultrasonography for screening asymptomatic patients or those without risk factors for atherosclerosis (Class: III, LOE: B). Routine serial extracranial carotid artery imaging is not indicated in disease-free patients on initial vascular imaging and without risk factors (Class: III, LOE: C).

Table 1

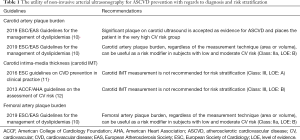

Table 1 The utility of non-invasive arterial ultrasonography for ASCVD prevention with regards to diagnosis and risk stratification
Full table

Carotid plaque texture

Interestingly, not only carotid plaque burden, but also texture of the carotid plaques has been described as a potential risk predictor of vascular events (15). In that study (15), 298 patients from a prevention clinic who had baseline and 1 year carotid plaque volume and plaque texture measures (n=376, based on 9 different texture extraction techniques) were included. Patients were followed-up for the endpoints of MI, TIA and stroke (median: 3.12 years) (15). Combination of changes in texture and total volume yielded the best performance for predicting outcomes (AUC: 0.78±0.02 in ROC curve analysis; HR: 6.2, 95% CI: 4.2–7.9, P<0.001 in Kaplan-Meier curve analysis). Carotid plaque texture change was a predictor of outcomes independent from the Framingham Risk Score (FRS) (HR: 1.4, 95% CI: 1.3–1.5, P≤0.002) (15).

Carotid plaque ulcer volume

The impact of total carotid plaque ulcer volume on primary (stroke, TIA or vascular death) and secondary (stroke, TIA, vascular death, MI, revascularization) composite endpoints were evaluated in 349 patients from a prevention clinic who were followed-up for a median 3.17 years (16). Total ulcer volume being ≥5 mm3 was associated with adverse outcomes (P=0.009 and P=0.017 for primary and secondary endpoints, respectively) (16).

Carotid intima-media thickness

A meta-analysis (17) that included 13 articles (n=76,201) that investigated the association between carotid IMT and future CV events, as well as the additional role of carotid IMT on top of existing CV risk assessment tools showed that, despite its association with MI and stroke risk, the addition of carotid IMT to conventional CV risk prediction models did not result in an improvement (P=0.8). Another meta-analysis (18) that was published one year before the forementioned meta-analysis had included 14 studies (n=45,828) reported that the addition of common carotid IMT did not yield in a prominent improvement to the FRS in 10-year MI or stroke risk prediction. C statistic was 0.757 (95% CI: 0.749–0.764) at baseline and 0.759 (95% CI: 0.752–0.766) after addition of common carotid IMT to the model. NRI was 0.8% (95% CI: 0.1–1.6%).

The utility of carotid IMT measurement for ASCVD prevention with regards to diagnosis and risk stratification is outlined in Table 1.

Femoral artery ultrasonography

In recent years, there has been a growing interest in subclinical atherosclerosis imaging in the iliofemoral arterial territories.

The PESA (Progression of Early Subclinical Atherosclerosis) study (19), which enrolled 4,184 asymptomatic patients (no CV risk factors in 38%, >2 CV risk factors in 5% patients), showed that plaques were most frequently found in the iliofemoral arteries (44%), followed by the carotid arteries (33%) (19). A substudy of the PESA study (n=3,680, median 10-year ASCVD risk: 2.17, no CV risk factors in 44% patients) (20) evaluated plaque burden using 3D vascular ultrasound. Plaque burden was greater in the femoral arteries compared to the carotids (64 vs. 23.1 mm3, P<0.001). Plaque burden was associated with ASCVD risk independent of the number of territories affected or plaques (P<0.01).

The AWHS (Aragon Workers’ Health Study) (21) that included 40-59-year-old men (n=1,423; no CV risk factors in 20.7%, >2 CV risk factors in 9.9% patients) also showed that subclinical atherosclerosis, which was assessed using carotid and femoral ultrasonography as well as CACS, was most commonly located at the femoral arteries (54%). Femoral atherosclerosis had stronger associations with TRFs and positive CACS compared to carotid atherosclerosis.

The utility of femoral artery plaque burden assessment for ASCVD prevention with regards to diagnosis and risk stratification based on European guidelines is outlined in Table 1. However, it has not been mentioned in the American guidelines. “A rational screening plan” for reclassifying FRS was provided in an editorial paper (22) that commented on the study by Laclaustra et al. (21).


Utility of intravascular ultrasound (IVUS)

Evidence from IVUS studies, including the more extensive arterial remodeling (i.e., larger plaque area and positive remodeling) in unstable clinical presentations compared to patients with stable angina (23) and the increased prevalence of ulcerated non-culprit lesions in MI patients (24), have provided data on pathogenesis of MACE in ASCVD. In addition, IVUS studies have reported plaque features that are related to coronary atherosclerotic burden changes. When adjusted for baseline characteristics, more calcified lesions (represented by baseline calcium index being ≥ median) were shown to be associated with a lower rate of change in atheroma burden (progression or regression) (OR: 0.48, 95% CI: 0.35–0.66, P<0.0001) (25). Spotty calcification in patients with stable CAD was associated with progression in percent atheroma volume (PAV) (change in PAV adjusted for baseline characteristics: 0.68%±0.12% vs. 0.05%±0.17%, P=0.002) (26). IVUS studies have also highlighted the response in coronary atherosclerotic plaque burden to statin therapy. Even in stable CAD with high-risk features (n=201), such as high plaque burden (PAV >63%), spotty calcification or positive remodeling, statin therapy may cause regression of atherosclerosis (change in PAV: −0.83%±0.53% vs. 1.87%±0.68%, P=0.01) (27).

The prognostic value of IVUS on plaque characteristics in ASCVD has been investigated in several studies. A 2-year follow-up of stable CAD patients undergoing IVUS (n=4,477) showed that the incidence of MI (1.0 vs. 1.4%, P=1.00) and death (0.0 vs. 0.1%, P=1.00) were similar between those with (n=201) and without (n=4,276) high-risk plaques (HRPs). However, the analysis of 4,137 CAD patients undergoing serial IVUS investigations, who were followed-up for a mean of 21.1 months demonstrated that higher baseline plaque burden (reflected with PAV) was associated with a greater likelihood of MACE, defined as MI, coronary revascularization and death (HR: 1.32, 95% CI: 1.22–1.42, P<0.001) (28). Greater increase in PAV at follow-up was also associated with greater risk of MACE (HR: 1.20, 95% CI: 1.10–1.31, P<0.001). These two parameters remained significant after adjustment for clinical risk factors (28).

In addition to greater plaque burden, findings of PREDICTION (Prediction of Progression of Coronary Artery Disease and Clinical Outcome Using Vascular Profiling of Shear Stress and Wall Morphology) study (29) showed that low shear stress was also an independent predictor of plaques that required revascularization within 1 year in high-risk patients following a percutaneous coronary intervention for an acute coronary syndrome (ACS) (HR: 3.18, 95% CI: 1.20–8.43, P=0.020).

The utility of IVUS for diagnosis and risk stratification of ASCVD is outlined in Table 2. IVUS is not suitable for primary prevention for ASCVD.

Table 2

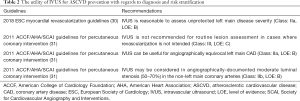

Table 2 The utility of IVUS for ASCVD prevention with regards to diagnosis and risk stratification
Full table

Coronary artery calcium score

Coronary artery calcium score (CACS) is a relatively simple screening test using ECG-gated non-contrast computed tomography, yet several studies confirmed its powerful prognostic value. A large-scale study (n=25,253) showed that CACS was an independent predictor of all-cause mortality during a mean follow-up of 6.8 years when adjusted for baseline characteristics [for CACS >10 Agatston units (AU), HR range: 3.61–9.36, P<0.0001] and 10-year survival worsened with increasing CACS (99.4% for CACS =0 vs. 87.8% for CACS ≥1,000 AU, P<0.0001) (32). In another study, a baseline CACS of 0 conferred <1% mortality in 4,864 asymptomatic low-risk patients followed up for a mean of 14.6 years (33). In the multivariate analysis, CACS was the strongest predictor of all-cause mortality when adjusted for baseline characteristics (HR: 2.67, 95% CI: 2.29–3.11, P<0.001) (n=9,715). Increasing CACS remained to be an independent predictor of all-cause mortality when adjusted for FRS and NCEP ATP III (National Cholesterol Education Program Adult Treatment Panel III) (n=9,715) (33).

In addition to the prognostic role of CACS in all-cause mortality, its impact on incident coronary events was also explored. In the Multi-Ethnic Study of Atherosclerosis (MESA) study (34), 6,722 subjects from four ethnic groups who were free from known CVD were followed up for a median of 3.8 years. Increasing CACS was a significant predictor of major coronary events (defined as MI and death from CAD) (for CACS =1–100 AU, HR: 3.89; for CACS >300 AU, HR: 6.84) and any coronary event risk (for CACS =1–100 AU, HR: 3.61; CACS >300 AU, HR: 9.67) after adjusting for TRFs (all P<0.001) (34). A substudy (35) of the MESA study undertaken in 3,398 subjects followed-up for a median of 7.6 years showed that in the multivariable model, lnCAC (natural logarithm of CAC) volume score (HR: 1.81, 95% CI: 1.47–2.23, P<0.001 and HR: 1.68, 95% CI: 1.42–1.98, P<0.001) and CAC density score (HR: 0.73, 95% CI: 0.58–0.91, P=0.006 and HR: 0.71, 95% CI: 0.60–0.85, P<0.001) were independent predictors of CAD events (CAD death, resuscitated cardiac arrest or MI) and all CVD events (hard CAD, stroke or stroke death) risk, respectively (35).

A follow-up of MESA study (36) (n=6,814) with median follow-up of 11.1-year showed that 10-year ASCVD (MI, stroke, resuscitated cardiac arrest, CAD deaths) event rates increased across CACS categories independent of age, gender, ethnicity or baseline statin use. Each doubling of CACS was associated with a HR: 1.14 (95% CI: 1.11–1.17, P<0.001) for ASCVD risk (36).

Inclusion of CACS in the MESA score resulted in improvement in 10-year CAD risk prediction when added on top of TRFs (Harrell’s C-statistic from 0.750 to 0.800) (37). Similarly, the NRI was also improved when CACS was added on top of FRS in the intermediate-risk group of the MESA participants (n=1,330) (NRI: 0.659 for incident CAD and NRI: 0.466 for incident CVD) (38). A follow-up of 6,698 subjects from the MESA study showed that even subjects without CV risk factors could have CACS >300 AU (in 5%), and interestingly subjects having ≥3 CV risk factors could have CACS =0 AU (35%) (39). Subjects with ≥3 CV risk factors having CACS =0 AU had lower CAD event rates compared to those without CV risk factors but CACS >300 AU (3.1/1,000 person-years vs. 10.9/1,000 person-years), suggesting that CACS may be used for further risk stratification. This was further validated in the multicenter CAC Consortium cohort that enrolled 66,636 primary prevention patients undergoing CACS assessment (40).

The utility of CACS as a risk classifier may be regarded as its biggest advantage in CVD prevention patients. A study comparing 13 negative risk markers among 6,814 participants of the MESA study for the prediction of CAD and all CVD events at 10-year follow-up (41) showed that a negative CACS was the strongest negative risk marker, when adjusted for TRFs. This was assessed using a statistically determined diagnostic likelihood ratio (DLR), where CACS =0 AU had a mean DLR of 0.41 for all CAD, 0.51 for hard CAD and 0.54 for all CVD (41). The other imaging parameters assessed along with CACS =0 were absence of carotid plaque, carotid IMT <25th percentile and change in brachial flow-mediated dilation >5% (41). A more recent study including 5,805 BioImage participants investigated the negative risk markers for risk stratification in the elderly population (mean age: 69 years) (42). CACS =0 AU (mean DLR: 0.20 and 0.41, respectively) and CACS ≤10 AU (mean DLR: 0.20 and 0.48, respectively) were the strongest negative risk markers of CAD and CVD (42). Other imaging parameters assessed along with CACS were absence of carotid plaque and carotid IMT <25th percentile.

CACS has the potential to transform into clinical therapeutic decision, including identification of patients who may benefit from statin treatment. Applying 2013 ACCF/AHA guidelines on the treatment of blood cholesterol (43) to the MESA cohort, the investigators showed that in the intermediate-risk group, who had 10-year ASCVD risk of 5–20%, having CACS =0 AU reclassified the risk below the cut-off for statin consideration (44). Similar results were obtained regarding the down-classification potential of CACS =0 AU when 2016 ESC (European Society of Cardiology)/EAS (European Atherosclerosis Society) guidelines on the management of dyslipidemias (45) were applied to the MESA cohort (46). Median 9.4-year follow-up of a primary prevention cohort (n=13,644) for MACE (defined as a composite of acute MI, stroke and CV death) showed that benefit from statins to reduce MACE was observed in those with positive CACS (HR: 0.76, 95% CI: 0.60–0.95, P=0.015), but not in patients with CACS=0 (HR: 1.00, 95% CI: 0.79–1.27, P=0.99) (47). The more elevated the CACS, the more likely the subjects were to benefit from statins (P<0.0001) (47).

As demonstrated in a meta-analysis of 6 studies (48) (11,256 subjects, mean follow-up: 1.6–6.0 years), once a patient was diagnosed with a positive CACS, they had higher odds of aspirin (OR: 2.6, 95% CI: 1.8–3.8), lipid-lowering (OR: 2.9, 95% CI: 1.9–4.4) and blood pressure-lowering (OR: 1.9, 95% CI: 1.6–2.3) drug initiation; lipid-lowering drug continuation (OR: 2.3, 95% CI: 1.6–3.3) as well as lifestyle changes, including dietary changes (OR: 1.9, 95% CI: 1.5–2.5) and increase in exercise (OR: 1.8, 95% CI: 1.4–2.4).

The utility of CACS for diagnosis and risk stratification of ASCVD is outlined in Table 3. An algorithm for the use of CACS in various clinical scenarios is suggested in Figure 1.

Table 3
Table 3 The utility of CACS for ASCVD prevention with regards to diagnosis and risk stratification
Full table

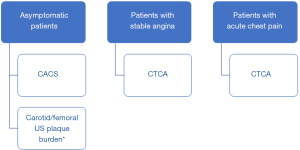

Figure 1 Figure summarizing the first-line cardiovascular imaging strategy for risk stratification for ASCVD in primary prevention cohort. Note that patients presenting with stable angina and acute chest pain should be clinically evaluated, and undergo CTCA if clinically appropriate. ASCVD, atherosclerotic cardiovascular disease; CACS, coronary artery calcium score; CTCA, CT coronary angiography; US, ultrasonography. *Not present in American guidelines.

CT coronary angiography (CTCA)

CTCA may diagnose ASCVD and discriminate individuals at risk of MACE by assessing several aspects, including grading luminal stenosis, defining HRP and quantifying plaque burden. CTCA also allows non-invasive functional assessment, including fractional flow reserve calculation derived from CT (FFR-CT) (53-55) and perfusion imaging (56), which are beyond the scope of this review.

Anatomical disease severity assessment

CTCA may be useful: (I) to detect left main stem or multivessel disease, (II) to diagnose “obstructive” CAD in patients with stable angina and (III) to guide management strategies, including revascularization (57).

When compared with invasive coronary angiography (ICA), CTCA was shown to have excellent negative predictive values both in patient-based (97%, 95% CI: 94–100%) and segment-based (99%, 95% CI: 98–99%) analyses (n=360) (58).

The CONFIRM (Coronary CT Angiography Evaluation for Clinical Outcomes: an International Multicenter) registry (59), which included 15,207 intermediate-risk patients undergoing CTCA followed up for a mean of 2.3 years, showed that patients said to have no and mild CAD according to CTCA had low rates of ICA (2.5% and 8.3%, respectively) and revascularization (0.3% and 2.5%, respectively) rates. Predictors of ICA in patients with non-obstructive stenosis on CTCA obtained from the multivariate model were advancing age, typical chest pain, mild left main stenosis, mild proximal left anterior descending artery stenosis, mild proximal left circumflex artery stenosis and mild proximal right coronary artery stenosis. In patients with non-obstructive CAD, the survival was worse in those undergoing ICA (HR: 2.25, 95% CI: 1.16–4.39, P=0.011) (59). However, in those with obstructive CAD, the survival was better in those undergoing ICA (HR: 0.61, 95% CI: 0.38–0.99, P=0.047) (59).

Five-year follow-up of the CONFIRM registry (60) (n=5,632) showed that there was a strong association between degree of CAD defined by CTCA and MACE (defined as composite all-cause mortality and non-fatal MI). There was an independent association between higher MACE risk and increased severity and extent of CAD (HR: 2.25 for non-obstructive CAD, HR: 2.86 for obstructive 1-vessel CAD, HR: 3.46 for 2-vessel CAD and HR: 4.68 for 3-vessel obstructive CAD (all P<0.001). Similar results were obtained from a Danish multicenter study (n=16,949) (61).

In the PROMISE (Prospective Multicenter Imaging Study for Evaluation of Chest Pain) trial (62), 10,003 symptomatic patients that were suspected from CAD were randomized to initial CTCA or functional testing and followed-up for a median of 25 months. Composite primary endpoint of hospitalization for unstable angina or major procedural complications, MI, any-cause death were similar in the CTCA (3.3%) and functional-testing (3.0%) groups (P=0.75) (62). More patients in the CTCA group underwent ICA within 90 days (12.2 vs. 8.1%), but no obstructive CAD on ICA was more common in the functional testing group (4.3% vs. 3.4%, P=0.02) (62).

In the Scottish Computed Tomography of the Heart (SCOT-HEART) trial (63), 4,416 patients with suspected stable angina were randomized to standard care plus CTCA versus standard care alone (1:1). Addition of CTCA led to significant changes in reclassification of diagnosis (change in 6-week diagnosis of CAD: 27% in CTCA vs. 1% in standard care; change in 6-week diagnosis of angina: 23% in CTCA vs. 1% in standard care; both P<0.001), planned investigations (change: 15% vs. 1%, P<0.001) and antianginal treatments (change: 9% vs. 1%, P<0.0001), associated with a trend towards reduction in fatal and non-fatal MI (HR: 0.62, 95% CI: 0.38–1.01, P=0.052) during follow-up (median: 1.7 years). A follow-up of SCOT-HEART trial (64) (median follow-up: 4.8 years) showed that the 5-year rate of death from CAD or non-fatal MI was lower in the CTCA group compared to standard care alone (HR: 0.59, 95% CI: 0.41–0.84, P=0.004).

The utility of CTCA for diagnosis and risk stratification of ASCVD is outlined in Table 4. Although not performed with the aim of primary prevention, its results enable risk stratification in patients without prior CV events. An algorithm for the use of CTCA in various clinical scenarios is suggested in Figure 1.

Table 4

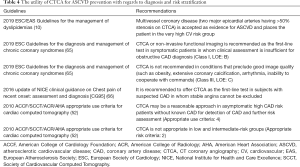

Table 4 The utility of CTCA for ASCVD prevention with regards to diagnosis and risk stratification
Full table

According to CAD-RADS (Coronary Artery Disease Reporting and Data System) reporting system (57), degree of maximal luminal stenosis is used to make categorizations. In patients classified to CAD-RADS 3 to 5, further cardiac testing (combinations of functional testing, ICA or revascularization) is suggested for stable chest pain or low to intermediate-risk acute chest pain patients. CAD-RADS 3 refers to “moderate stenosis”, defined as maximal luminal stenosis of 50–69%. CAD-RADS 4A refers to “severe stenosis”, defined as maximal luminal stenosis of 70–99% in single-vessel or 2-vessels, whereas CAD-RADS 4B refers to “severe stenosis” (>70%) in 3-vessels or left main stenosis >50%. CAD-RADS 5 refers to total coronary occlusion (100%). Yet, patients that belong to CAD-RADS 1 (1–24% of maximal luminal stenosis) and 2 (25–49% of maximal luminal stenosis) categories require preventive management strategies (lifestyle modification, drug therapies) in order to control the atherosclerotic burden.

Plaque characterization

CTCA enables assessment of HRP features (positive remodeling, spotty calcification and low-attenuation plaque) that were reported to be more prevalent in culprit ACS lesions versus stable plaques (67), as well as features that are more likely to result in ACS diagnosis during index hospitalization (68) or at follow-up (69). Positive remodeling and/or low-attenuation plaques on CTCA were independent predictors of ACS at a mean of 27-month follow-up (n=1,059) (HR: 22.8, 95% CI: 6.9–75.2, P<0.001) (69). Plaque composition assessment obtained from CTCA was validated histologically (70) and through virtual histology-IVUS (VH-IVUS) (71,72) or optical coherence tomography (OCT) (73) studies. In the CAD-RADS reporting system (56), a vulnerable plaque is defined as presence of ≥2 of the following plaque characteristics: (I) spotty calcification, (II) napkin-ring sign, (III) positive remodeling, (IV) low attenuation (Figure 2).

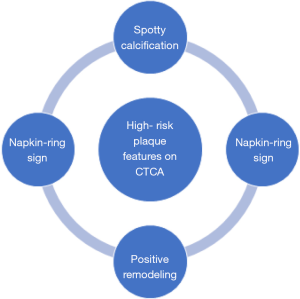

Figure 2 High-risk plaque features depicted on CTCA: A vulnerable plaque is defined as presence of ≥2 of the plaque characteristics shown above. The high-risk features are described in the Society of Cardiovascular Computed Tomography consensus document by Cury et al. (57). CTCA, CT coronary angiography.

There are several studies evaluating the impact of CTCA plaque characteristics on MACE. At a mean 3.9-year follow-up of 3,158 patients with suspected or known CAD undergoing CTCA, patients with HRP (low attenuation or positive remodeling) had a 10-fold higher fatal and non-fatal ACS rate than those without HRP [HR: 13.13, 95% CI: 3.80–82.66, P<0.0001 in HRP+/significant stenosis (SS)- group; HR: 17.24, 95% CI: 4.87–109.47, P<0.0001 in HRP+/SS+ group], however the cumulative event number was similar between two groups since the number of HRP+ subjects was 10-fold lower (74). A study with longer follow-up (75) (mean 7.8 years) showed that low attenuation plaques (HR: 4.5, 95% CI: 1.4–14.8, P<0.001), napkin-ring sign (HR: 7.0, 95% CI: 2.0–13.6, P<0.001) and spotty calcification (HR: 2.6, 95% CI: 1.1–6.5, P<0.001) were significant predictors of MACE (defined as ACS) after adjusting for TRFs in 1,469 low-to-intermediate risk patients. Most recently, the 5-year follow-up results of SCOT-HEART trial (n=1,769) showed that although HRP characteristics were more associated with higher MACE rates, these were not independent of CACS (76).

A recent study also showed that HRP was not an independent predictor of the progression of an individual non-obstructive coronary artery stenosis lesion (n=1,297 patients, n=3,049 lesions, mean interscan interval: 3.8 years) (77). In the multivariate model including TRFs, medications, change in low-density lipoprotein levels, total PAV, % diameter stenosis and HRP, only baseline total PAV and % diameter stenosis were independent predictors of progression to obstructive lesions (HR: 1.04, 95% CI: 1.02–1.07 and 95% CI: 1.07, 95% CI: 1.04–1.10, respectively, both P<0.05) (77).

Plaque burden quantification

Semiautomated segmentation technology on CTCA that helps to quantify plaque burden has been used in many research studies (78,79). Incremental value of semiautomated plaque quantification when added to clinically determined risk features and conventional CTCA measures for predicting ACS was demonstrated in a study including 1,650 patients followed-up for a mean of 26 months for ACS (AUC from 0.64 to 0.79, P=0.047) (78). Total plaque burden identified using CTCA was also shown to have greater diagnostic accuracy than anatomical stenosis severity for prediction of ischemic lesions defined by FFR-ICA (AUC: 0.83 for total plaque burden vs. 0.68 for stenosis, P=0.04) (79).

Other applications of CTCA

CTCA also enables qualitative and quantitative assessment of the perivascular adipose tissue, which has been suggested to be a predictor of adverse outcomes in ASCVD (80,81).

High perivascular fat attenuation index (FAI) (cutoff ≥70.1 HU) around the right coronary artery was found to be an independent predictor of all-cause (HR: 2.55, P<0.001 and HR: 3.69, P<0.001, respectively) and cardiac mortality (HR: 9.04, P<0.001 and HR: 5.62, P<0.001, respectively) in both derivation (n=1,872, median follow-up: 72 months) and validation cohorts (n=2,040, median follow-up: 54 months) when adjusted for TRFs, tube voltage and CTCA-derived measures, including modified Duke CAD index and number of HRP features (80).

A recent study reported that a fat radiomic profile (FRP), a machine-learning based algorithm for the radiomic features of the perivascular adipose tissue extracted from CTCA images, was able to discriminate patients that would experience MACE within 5 years of the CTCA scan (C-statistic: 0.77, 95% CI: 0.62–0.93) and provide additional prognostic information to predict MACE when added to a model that included TRFs, CACS, coronary stenosis and HRP features on CTCA (Delta C-statistic: 0.126, P<0.001) (81).


Magnetic resonance imaging (MRI)

Carotid MRI

MR angiography (MRA) combines both angiography and soft tissue assessment and may be used to assess carotid artery stenosis (82,83). Black blood carotid artery imaging using turbo spin echo sequence was also shown to be useful to evaluate wall thickness and plaque eccentricity (standard deviation of wall thickness) in the carotid arteries (84). In that study, which was performed in 195 patients that were ≥50 years and had ≥2 CV risk factors, plaque eccentricity was independently associated with prior MACE (defined as history of TIA, stroke, ACS or coronary revascularization) after adjusting for traditional risk factors (OR: 1.80, 95% CI: 1.18–2.76) (84).

There are other applications of MRI with respect to atherosclerosis imaging of the carotid arteries, including ultrasmall superparamagnetic particles of iron oxide (USPIOs) imaging to track macrophage infiltration (i.e., inflammation) (85,86); T1-weighted high-intensity plaque (HIP) imaging to identify to identify plaque rupture and intraplaque hemorrhage (87,88) and T2-mapping to quantify lipid content and distribution (89,90).

T1-weighted HIP imaging of the carotid arteries was shown to be a predictor of future coronary events, defined as unstable angina pectoris or emergency hospitalization for recurrent angina, non-fatal MI, cardiac death, in subjects with stable CAD at a mean of 38.3 months (n=217) (Number of composite endpoint: 31 in HIP+ group vs. 5 in HIP- group, P<0.001 by log-rank test) (91).

2010 ACCF/ACR/AHA/NASCI (North American Society for Cardiovascular Imaging)/SCMR (Society of Cardiovascular Magnetic Resonance) expert consensus document on cardiovascular magnetic resonance (92) states that CMR may be used for determining the presence and extent of stenosis in the carotid arteries. However, carotid MRI is not clinically implicated for risk stratification in ASCVD.

Cardiac magnetic resonance imaging (CMR)

Besides its angiographic utility, CMR also has the potential to characterize high-risk coronary atherosclerosis based on the utility of various sequences (93): late gadolinium enhancement imaging to identify large necrotic core; T1-weighted black blood imaging to identify positive remodeling (94,95); T1-weighted HIP imaging to identify subclinical plaque rupture, angiogenesis and intraplaque hemorrhage (96,97); USPIO imaging to track macrophage infiltration (i.e., inflammation) (98). However, these techniques are not currently in routine clinical use.

In a substudy of MESA cohort (n=38 subjects; 88 arterial segments) (94), in which the inclusion was on a voluntary basis, coronary artery wall thickness was measured using black blood imaging. In subjects that had CACS =0 (n=23), the coronary walls were thicker in those that had ≥2 TRFs compared to those with <2 TRFs (Mean thickness: 1.95 vs. 1.70 mm, P<0.05).

A study suggested the plaque-to-myocardium signal intensity ratio obtained from non-contrast T1-weighted imaging was an independent predictor of adverse events (cardiac death, ACS or ischemia-driven percutaneous coronary intervention owing to progressive angina pectoris) at a median follow-up of 55 months when adjusted for TRFs in patients with known or suspected CAD (HR: 3.96, 95% CI: 1.92–8.17, P<0.001) (n=568) (96). Plaque-to-myocardium signal intensity ratio obtained using T1-weighted imaging was also reported to be an independent predictor of periprocedural myocardial injury in patients undergoing elective percutaneous coronary intervention (n=57) (97).

According to 2010 ACCF/ACR/AHA/NASCI/SCMR expert consensus document on cardiovascular magnetic resonance (92), CMR may be used to identify coronary artery luminal patency without exposure to iodinated contrast or radiation. However, CMR is not clinically implicated for risk stratification in ASCVD.


Positron emission tomography

Potential radionuclide agents and targets for imaging ASCVD include 18F-labeled fluorodeoxyglucose (18F-FDG) (99-101) and 68Ga (68Gallium)-labeled DOTATE (102,103) for assessing the severity of inflammation; 18F-labeled sodium fluoride (18F-NaF) (104-106) for microcalcification. Although most commonly combined with CT, PET may also be combined with MRI as reported in a recent study (107).

With respect to inflammation imaging of the coronary arteries using PET, studies using 18F-FDG (99) and 68Ga-DOTATE (102) as tracers reported higher uptake in the setting of ACS compared to stable CAD (99) and in culprit arteries compared to non-culprit arteries in the setting of ACS (102), respectively.

Regarding imaging of microcalcification in the coronary arteries, studies using 18F-NaF as tracers assessed the relationship between tracer uptake and CACS (104); the comparison of tracer uptake between culprit and non-culprit lesions in the setting of ACS(105), as well as HRPs and non-HRPs in the setting of stable CAD (105). A moderate correlation of CACS with 18F-NaF uptake was observed in high tracer uptake group of patients only (n=40) (r=0.652, P<0.001) (104). Interestingly, 40% of subjects that had CACS >1,000 AU had normal uptake of the radiolabeled tracer and 5% of subjects with CACS 1–100 AU had increased uptake (104).

18F-NaF uptake was reported to be higher in culprit lesions compared to non-culprit lesions in the setting of ACS (Median target-to-background ratio: 1.66 vs. 1.24, P<0.0001) (n=40), where 18F-FDG uptake was similar within groups (P=0.34) (105). 18F-NaF uptake was also found to be significantly higher in HRPs determined using IVUS compared to non-HRPs in stable CAD patients (n=40) (105). Increased 18F-NaF uptake was also reported to correspond to histological evidence of plaque rupture, macrophage infiltration, active calcification, apoptosis and necrosis (all P<0.05) (in 9 carotid endarterectomy specimens) (105).

A recent prospective study showed that degree of pre-angioplasty inflammation and micro-calcification assessed using 18F-FDG and 18F-NaF PET/CT imaging of the superficial femoral artery predicted arterial re-stenosis at 1 year in symptomatic peripheral artery disease patients undergoing angioplasty (n=40) (101). However, more studies are needed to understand if the vascular inflammation degree has a prognostic role for risk stratification in ASCVD prevention patients.

Table 5 provides an overview of the current imaging approaches for the evaluation of ASCVD. In clinical practice, the type of cardiovascular imaging modality used for ASCVD depends on various factors, including patient characteristics, patient preferences and institution characteristics, resources and expertise (Figure 3).

Table 5

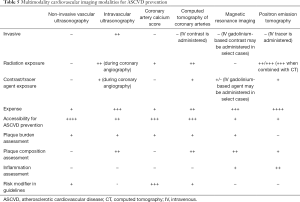

Table 5 Multimodality cardiovascular imaging modalities for ASCVD prevention
Full table
Figure 3 A summary of factors that influence the cardiovascular imaging approach of choice.

Other imaging methods for ASCVD risk evaluation

The utility of retinal vessel imaging for prediction of ASCVD risk was investigated in recent studies. At a mean of 16-year follow-up of 10,470 subjects without known CVD from the ARIC study undergoing retinal photography, narrower retinal arterioles and wider retinal venules were associated with higher rates of adverse outcomes (108). When adjusted for PCE (Pooled Cohort Equation) risk score, narrowing in arteriole and widening in venule were significant predictors of ischemic stroke (HR: 1.06, P=0.020; HR: 1.13, P<0.001, respectively) and death (HR: 1.14, P=0.013; HR: 1.18, P=0.001, respectively) in both genders, as well as CAD in women (HR: 1.13, P=0.012; HR: 1.10, P=0.040, respectively) but not in men. Further research on this topic is required before implementing retinal vessel imaging into clinical practice.


Conclusions

Arterial ultrasonography and CT imaging techniques including CACS, are the current mainstay imaging modalities for risk stratification in ASCVD in routine clinical practice. Additional imaging modalities, including MRI and PET, also have potentially important emerging roles in ASCVD risk stratification. The selected imaging approach for ASCVD evaluation ultimately should be individualized for each patient based on various factors, including patient characteristics, and patient preferences, as well as institution characteristics, resources and expertise.
