Aortic dissection (AD) and acute coronary syndrome (ACS) are two of the most life-threatening diseases encountered in the emergency department (ED) (1). Early and intensive anti-thrombotic therapy is crucial for patients with ACS, but it may be catastrophic for patients with AD (2). Therefore, differentiating AD from ACS rapidly and accurately is of great significance. However, because these two diseases share similar risk factors and clinical characteristics, a fast and accurate differential diagnosis is challenging for clinicians. For patients with ST segment elevation myocardial infarction, there are significant characteristics of electrocardiogram (ECG) for differentiating between these conditions. However, for patients with AD and non-ST segment elevation ACS (NSTE-ACS), there are no fast and reliable tools for differentiation. Currently, some noninvasive imaging methods, such as aortic computed tomography angiography (CTA) and magnetic resonance angiography (MRA), are used to diagnose AD (3), but these methods are time-consuming and unavailable at bedside. Echocardiography is a bedside tool that is able to provide important signs for diagnosis of AD, especially in patients with unstable hemodynamics, but the diagnostic accuracy and technical feasibility are limitations in ED (4).
The AD detection (ADD) risk score, which includes predisposing conditions, pain features and physical findings, is a simple assessment tool which guides the diagnostic approach for patients with chest pain (5). However, this ADD risk score system has its limitation (6). Several laboratory tests, including D-dimer, matrix metalloproteinases (MMPs), and genetic markers, have been developed as biomarkers for the diagnosis of AD, but there still exists some limitations of these biomarkers in the diagnosis of AD (7,8). Therefore, development of a predictive model that incorporates clinical characteristics and available bedside laboratory tests is desirable. As an individualized and evidence-based predictive model, nomogram is easy to use and can provide accurate information for decision making (9).
The purpose of this study is to develop and validate a nomogram to differentiate between AD and NSTE-ACS in ED. We present the following article in accordance with the TRIPOD Checklist (available at http://dx.doi.org/10.21037/cdt-20-935).
The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the institutional ethics committee board of Zhenjiang First People’s Hospital (No. K-20170032-W) and individual consent for this retrospective analysis was waived.
From January 2016 to July 2018, a retrospective study was conducted on 263 patients diagnosed with AD or NSTE-ACS in the Chest Pain Center of Zhenjiang First People’s Hospital. Assuming the nomogram had a sensitivity of 90% and a specificity of 90% for differentiating between AD and NSTE-ACS, at least 158 patients should be enrolled. The diagnosis of AD was based on the result of aortic CTA or MRA. The diagnosis of NSTE-ACS was according to the criteria in the guideline, which included chest pain, ECG and cardiac biomarkers (10). All the diagnoses of NSTE-ACS were confirmed by the coronary artery angiography (CAG). Exclusion criteria included: (I) history of anticoagulation therapy; (II) concomitant with severe infection, shock, disseminated intravascular coagulation, severe renal or hepatic dysfunction, malignancy or other diseases; (III) traumatic AD; (IV) patients who rejected CTA, MRA, CAG or other tests; (V) patients with ST segment elevation on ECG; and (VI) patients <18 years old.
Collection of data
All patients were evaluated by the elementary clinical characteristics, ECG and laboratory tests available in ED. Elementary clinical information included sex, age, history of hypertension, diabetes, smoking, history of AD and coronary artery disease (CAD). Chest pain was evaluated by the severity of pain, the quality of pain (tearing pain or not) and the duration of pain. The severity of chest pain was assessed by the Visual Analogue Scale (VAS) (11). In our study, patients with 1–3 scores were defined as mild pain, patients with 4–10 scores were defined as severe pain. Bedside laboratory tests included white blood cell (WBC), platelet (PLT), hemoglobin (Hb), blood urea nitrogen (BUN), creatine (Cr), uric acid (UA), D-dimer and troponin I (TnI). The results of aortic CTA or MRA were also evaluated in patients with AD, and the results of CAG were evaluated in patients with NSTE-ACS.
For continuous variables, the Kolmogorov-Smirnov test was used to investigate the distribution of the data. Variables with normal distribution are presented as mean ± SD, and the Student’s t-test was used to investigate differences of the variables between the groups. Variables that are not normally distributed are presented with interquartile range and median, and the Mann-Whitney test was used. Percentages were used to summarize the categorial data, and the χ2 or Fisher exact test was used when appropriate to evaluate the differences between groups.
The initial population was randomized to training and validation groups at a 7:3 ratio, which were utilized to develop and authenticate the model, respectively. The least absolute shrinkage and selection operator (LASSO) logistic regression model was used to select the factors with significant value of predicting the diagnosis of AD from the data in the training group. Factors with nonzero coefficients in the LASSO regression model were selected. Then multivariable logistic regression analysis based on the factors selected in the LASSO regression and some other factors with clinical significance, was performed to build a predicting model. Variables with the two-sided P value ≤0.1 were enrolled in the predictive model, whereas factors with clinical significance were included directly. To predict the probability of AD quantitatively for an individual patient, we built a nomogram based on the multivariable logistic regression analysis in the training group.
To assess the differentiating value of the nomogram, the area under the curve (AUC) of receiver operating characteristic (ROC) curve and the calibration curve were performed in the training group. Both methods were also used in the validation group to further validate the performance of the nomogram. In addition, decision curve analyses (DCA) were conducted to determine the clinical utility of the nomogram by quantifying the net benefits in both groups. All statistical analyses were performed with SPSS Statistics for Windows, v26.0 (SPSS Inc., USA) and R software (Version 4.0.2; https://www.r-project.org).
A total of 263 patients (94 AD patients and 169 NSTE-ACS patients) were enrolled, of which 70% were indiscriminately allocated to the training group (n=187), and the remaining patients were allocated to the validation group (n=76). Table 1 summarizes clinical characteristics, ECG and laboratory tests between the training group and validation group. Both groups had similar proportion of AD patients (36.4% in the training group and 34.2% in the validation group). Patients with AD in both groups had higher levels of D-dimer, WBC, higher proportion of pulse asymmetry and tearing pain. However, most clinical characteristics and laboratory tests were well-balanced between the training group and validation group.
Of elementary clinical characteristics, ECG and laboratory tests, 4 out of 20 features were strongly implied as potential predictors of diagnosis of AD in the training group with 187 patients (Figure 1), which were identified in the LASSO logistic regression model. The features included pain severity, tearing pain, D-dimer level and TnI level. For the usefulness of ECG and pulse asymmetry in clinical practice, these two features were also enrolled (Table 2).
Based on the predictive features identified in the training group, a nomogram that included 4 significant predictors and 2 factors with clinical significance was established for predicting the probability of AD in this population (Figure 2). Every factor in the nomogram got an individual score according to the value of factor, and a total score was obtained by summarizing the scores of the six factors, which could be used to estimate the probability of AD.
Performance of the nomogram

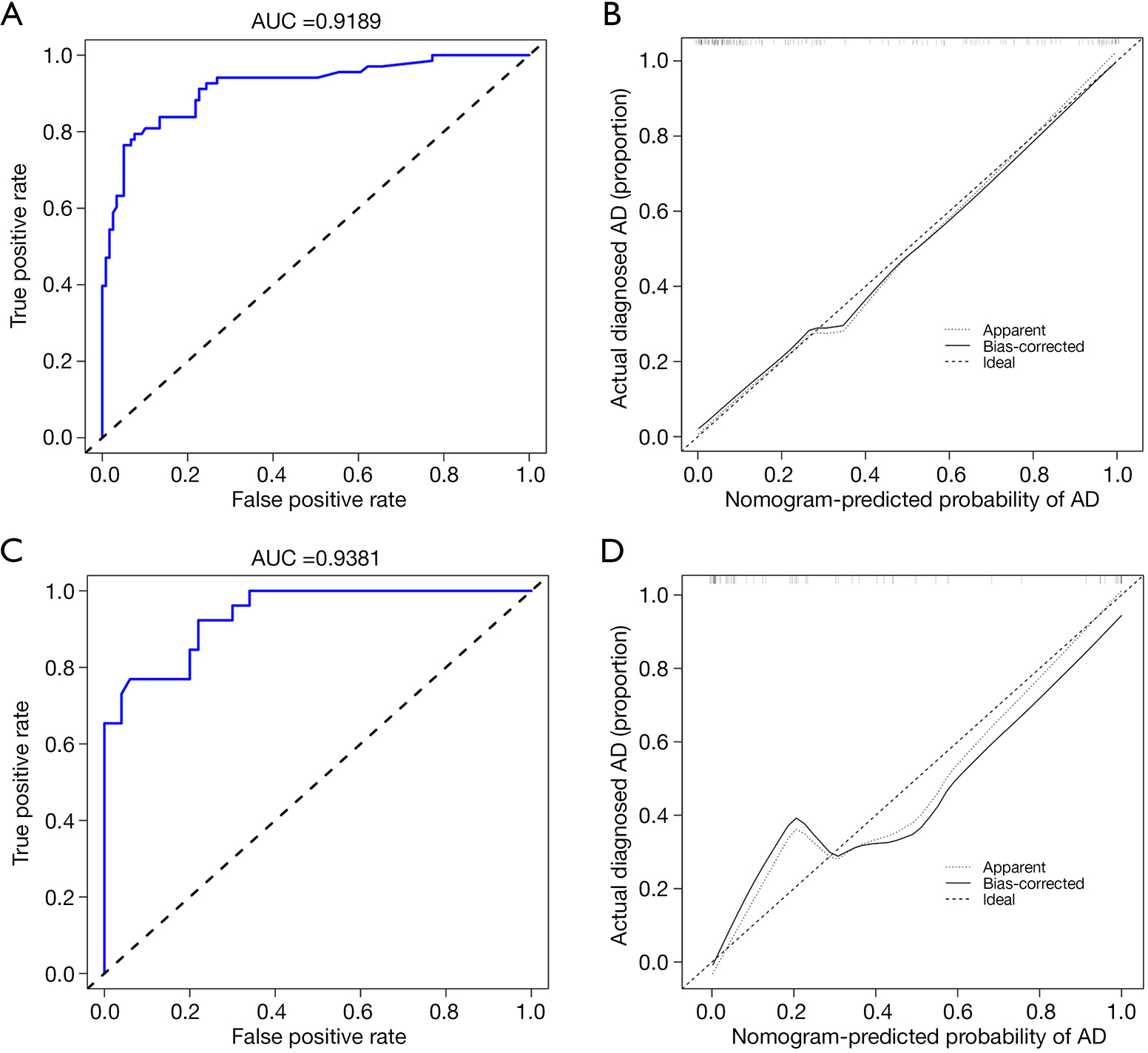

Firstly, we validated the effects of the nomogram to differentiate between AD and NSTE-ACS in the training group. The AUC of the nomogram to predict the diagnosis of AD was 0.919 (95% CI, 0.876–0.962) (Figure 3A). The calibration curve showed that predictive nomogram for the probability of AD excellently estimated actual probabilities (Figure 3B). Next, the performance of the nomogram was validated by comparing the predictive probability of AD and the actual clinical results in the validation group. The AUC of the predictive nomogram was 0.938 (95% CI, 0.888–0.989) (Figure 3C). The calibration curve showed a good consistency between the actual diagnosis of AD and the predicted probability (Figure 3D).
Clinical use of the nomogram

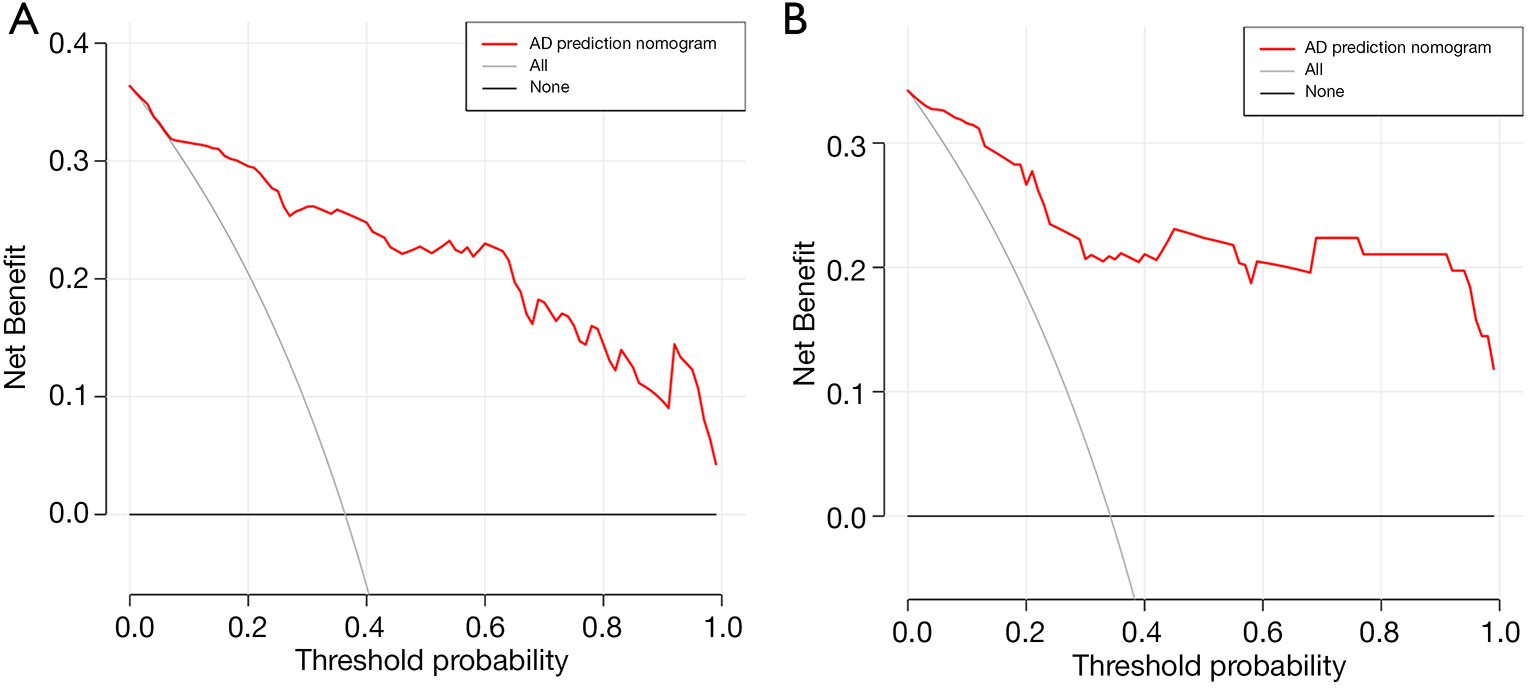

DCA for the nomogram to predict the probability of AD was performed to make sure whether this model can provide great net benefit. The results of DCA showed that the prediction nomogram had excellent overall net benefits in predicting AD in both the training group and the validation group (Figure 4A,B).
In this study, we developed a nomogram to differentiate between AD and NSTE-ACS in ED. All features enrolled in our nomogram were elementary clinical information and bedside laboratory tests available, allowing for routine accessibility in clinical practice. In addition, we validated the performance of the nomogram in both the training group and the validation group. The results showed that the nomogram had a good discrimination and calibration in both groups, with an AUC of 0.919 in the training group and 0.938 in the validation group.
In clinical practice, most patients with acute chest pain in ED have to be differentiated from AD, ACS and pulmonary embolism (PE). For the limit overlap between PE and the other two diseases, PE can be ruled-in or ruled-out easily based on the patients’ clinical characteristics (12). However, patients with AD often have similar symptoms and ECG changes for patients with ACS, especially in patients with non-ST segment elevation on ECG (13), making it challenging for clinicians to rapidly and accurately differentiate between AD and NSTE-ACS. Aortic CTA plays a central role in the diagnosis of AD presently. However, CTA would expose patients to the risks of radiation, contrast-induced nephropathy and allergies (4). Therefore, helping clinicians reduce the risk of both misdiagnosis and over-testing in differentiation might be of great significance.
Based on the risk factors, pain characteristics and physical examination findings, the ADD risk score was calculated to assess the probability of AD and recommended in the guidelines for AD. The ADD risk score ranged from 0–3 according to the number of variables in which at least one feature was present. Patients with ADD risk score ≥2 were suggested to be further assessed by CTA (14), but for patients with ADD risk score <2, which might be a large proportion of patients with chest pain, the value of ADD risk score was a limitation (15,16). In addition, the symptoms and physical findings varied among different patients (17). All these factors indicated that a risk score system only based on the elementary clinical conditions was insufficient to rule-in or rule-out AD patients, especially in the population of AD and NSTE-ACS.
D-dimer is a thrombotic/fibrinolytic product and available bedside in the ED worldwide. Elevated D-dimer level is as an indicator of the endogenous fibrinolytic activity naturally counteracting the activation of the extrinsic pathway of the coagulation cascade (18). In patients with AD, the rupture of the intima of the aorta permits the blood to contact with the non-endothelialized tissue, which would activate the extrinsic pathway of the coagulation cascade and subsequent endogenous fibrinolytic system (19). Therefore, D-dimer levels is often elevated in patients with AD. Many studies have also shown the good performance of D-dimer in differentiating AD from other chest pain diseases (20-22). However, elevated D-dimer levels were also found in patients with NSTE-ACS due to the plaque instability in the coronary artery and subsequent activation of the extrinsic coagulation system and the endogenous fibrinolytic system (23). Although the levels of D-dimer were lower in patients of NSTE-ACS than in patients with AD, the predictive value of D-dimer was decreased in the population (24). In addition, normal range D-dimer was also found in patients with AD (25). All these factors would limit the value of D-dimer in differentiating AD from NSTE-ACS. Troponin is an effective tool in the diagnosis of NSTE-ACS, especially in patients with myocardial infarction. However, owing to the delayed rise in measurable cardiac troponin from the onset of symptoms, the value of conventional troponin is limited for early detection of NSTE-ACS. High-sensitivity troponin can be detected within 1 hour after the onset of chest pain, but the low specificity and availability limits its value in clinical practice (26).
As suggested above, all these tools mentioned are of value in differentiating AD from other diseases in patients with acute chest pain. However, as they only partially reflect certain aspects of AD, these tools have their limitations. In our study, the multivariable logistic regression analysis showed pain severity, tearing pain, D-dimer and TnI levels were independent predictors for AD. Based on the values in clinical practice, ECG and pulse asymmetry were also enrolled our nomogram model.
As an accurate and distinguishable predictive tool, nomogram is widely applied in various professional fields to assist modern medical decisions (27,28). Based on the features selected, the nomogram developed to predict the probability of AD can be served as a viable scoring system. The different lines per predictor in the nomogram represents its relative importance for the prediction, thereby making the interpretation of the results easy to follow. For a clinician struggling to differentiate AD from NSTE-ACS, the probability of AD can be calculated by combining the scores of each factor on the nomogram (29). The calibration plots showed perfect calibration capacity of the predictive nomogram model for both internal and external validation. All these results indicated that our predictive nomogram had excellent discriminative power and accuracy to differentiate AD from NSTE-ACS in the population. The DCA in our study showed that the predictive nomogram had higher overall net benefits, and confirmed that the nomogram had the ability to differentiate patients with a high-risk probability of AD.
In addition to the accurate prediction, easy-to-use capability is another important advantage of the nomogram developed in our study. There were only 6 factors in our nomogram, which included symptoms (pain severity and tearing pain), vital sign (pulse asymmetry), ECG and laboratory tests (TnI, D-dimer). All these factors can be obtained easily in the ED, which is of great significance for patients with acute chest pain, especially for the high-risk patients who need urgent intervention.
There are several limitations of our study. Firstly, this analysis was based on data from a single center. Although we validated the efficacy of the nomogram in both the training group and the validation group, validation in other centers and with a larger sample size is needed to further assess efficacy. Secondly, for the relatively small sample size and low incidence of risk factors for AD, such as Marfan syndrome and family history, we did not consider these factors in our study. In addition, as a retrospective design, our study has some disadvantages compared to a prospective study. Therefore, further prospective validation of the nomogram to assess its efficacy should be encouraged. Lastly, the patients with cardiac arrest or profound shock who could not undergo CTA or MRA were not enrolled in our study, meaning the nomogram had limited value for these patients.
In conclusion, we developed and validated a predictive nomogram to differentiate AD from NSTE-ACS based on elementary clinical characteristics, ECG and bedside laboratory tests available. This nomogram can be used as a useful tool to differentiate AD from NSTE-ACS rapidly and accurately in the ED.
We thank all of our colleagues working in the Chest Pain Center, the Affiliated People’s Hospital of Jiangsu University. We would like to thank Dr. Tony Smith for his help in polishing our paper.
Reporting Checklist: The authors have completed the TRIPOD Checklist. Available at http://dx.doi.org/10.21037/cdt-20-935
Data Sharing Statement: Available at http://dx.doi.org/10.21037/cdt-20-935
Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/cdt-20-935). The authors have no conflicts of interest to declare.
Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by institutional ethics committee board of Zhenjiang First People’s Hospital (No. K-20170032-W) and individual consent for this retrospective analysis was waived.
Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
