The need for custom made frozen elephant trunk: when and where

Pierpaolo Chivasso1, Paolo Masiello1, Mario Miele1, Vito Domenico Bruno2, Alba Chiara Genovino1, Ivana Iesu1, Donato Triggiani1, Mario Colombino1, Francesco Cafarelli1, Rocco Leone1, Generoso Mastrogiovanni1, Severino Iesu1

1Department of Emergency Cardiac Surgery, University Hospital San Giovanni di Dio e Ruggi d’Aragona, Salerno, Italy; 2Bristol Medical School, Translational Health Science Department, Bristol, UK

Contributions: (I) Conception and design: P Chivasso, P Masiello, G Mastrogiovanni, S Iesu; (II) Administrative support: AC Genovino, VD Bruno; (III) Provision of study materials or patients: R Leone, M Miele, M Colombino, F Cafarelli; (IV) Collection and assembly of data: M Miele, M Colombino, I Iesu, D Triggiani, F Cafarelli; (V) Data analysis and interpretation: P Chivasso, VD Bruno, G Mastrogiovanni, P Masiello; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

Correspondence to: Dr. Pierpaolo Chivasso. Department of Emergency Cardiac Surgery, University Hospital San Giovanni di Dio e Ruggi d’Aragona, Via San Leonardo, 84126, Salerno, Italy. Email:;

Abstract: The frozen elephant trunk (FET) technique is an increasingly common procedure to treat complex extensive aortic disease both in elective and emergency setting. In a contemporary era, several prostheses are available to be used by surgeons performing such procedures, merging the advantages of endovascular and conventional surgery and preparing a more useful landing zone for second-stage downstream endovascular or open repair. Thoraflex hybrid (Terumo Aortic, Scotland) is a largely used hybrid vascular device merging a conventional surgical vascular graft made of gelatin-sealed woven polyester graft with a nitinol self-expanding stent graft. Since its release in 2012, this prosthesis has gained a large consensus, mainly for the plexus version, which allows for single reimplantation of the epiaortic vessels. In the last few years, new devices have come out to offer new specific weapons to be used by the surgical team in different clinical scenarios. In this context, the need of making the supra-aortic vessel debranching easier and more functional to our surgical technique has pushed our demand for a customization of a conventional Thoraflex hybrid. Here we report a modification to its standard design, the concept beyond the “Custom device” and its potential advantages with regards to our peculiar implantation technique and intraoperative cerebral perfusion during circulatory arrest time.

Keywords: Frozen elephant trunk (FET); aortic arch; aortic surgery; custom Thoraflex hybrid

Submitted Apr 16, 2022. Accepted for publication Jul 21, 2022.

doi: 10.21037/cdt-22-191


The frozen elephant trunk (FET) technique has become an effective option to treat both elective and emergency complex aortic conditions when the arch and the proximal tract of the descending thoracic aorta (DTA) are interested by the pathologic process (1). This surgical approach changes the conventional elephant trunk from a two-stage to a single stage procedure which allows to entirely replace the aortic arch with a surgical prosthesis which has got a distal stented portion deployed into the aortic arch and the proximal DTA (2-4). Recent studies have demonstrated that patients undergone to total arch replacement with the FET technique show a decreased incidence of aortic re-operations with improved long-term outcomes at follow up (5). Among the available hybrid prostheses, we have mainly used Thoraflex hybrid (Terumo Aortic, Scotland) which is a vascular device properly designed to facilitate the FET technique when a total arch replacement with single reimplantation of supra-aortic trunk (SAT) is employed by the surgical team. This prosthesis has a distal endovascular nitinol ringed stent-graft connected to a proximal 4-branched surgical graft. We have already reported the results of our initial experience with FET technique using a conventional Thoraflex hybrid prosthesis (6). The concept of a new Custom Thoraflex hybrid comes from our single centre experience of about 150 FET operations with conventional Thoraflex hybrid to treat equally acute and chronic complex aortic disease involving the aortic arch and DTA. The aim of the new device is to solve the technical pitfalls we have faced in our practise, such as reimplantation of the SAT vessels, especially the left common carotid (LCCA) and left subclavian (LSA) arteries, their chest placement, and optimal control of cerebral perfusion during circulatory arrest time. To sort this, we have requested a custom-made design of Thoraflex hybrid and our first experience with the initial version of a custom device has been already described (Figure 1): a conventional 28/30 mm diameter, 100 mm stent length Thoraflex Hybrid was changed to have only two branches: a main one (16 mm) for SAT reimplantation, and a lateral one (10 mm) for systemic perfusion. A separate trifurcated Gelweave™ surgical graft (10/8/8–16 mm) (Terumo Aortic) with a 10-mm side perfusion branch was used to connect the SAT vessels (7). Since then, several modifications have been proposed and here we present the new Custom Thoraflex hybrid with its implantation technique and the potential advantages compared to the conventional prosthesis.

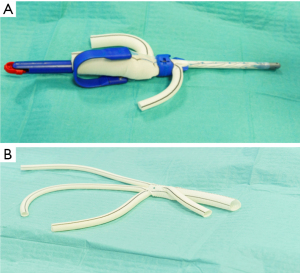

Figure 1 Initial configuration of the custom Thoraflex hybrid with only two side branches: a main one (16 mm) for SAT reimplantation, and a lateral one (10 mm) for systemic perfusion (A). A separate trifurcated Gelweave™ surgical graft (10/8/8–16 mm) (Terumo Aortic) with a 10-mm side perfusion branch was employed for debranching of SAT vessels (B). SAT, supra-aortic trunk.

Thoraflex hybrid FET graft

The Thoraflex hybrid is a novel graft designed for aortic arch surgery, which consists of a proximal tubular gelatin coated Dacron graft and a distal polyester made stent graft supported by self-expandable nitinol skeleton. The device can be directly deployed into the aortic arch and proximal DTA during circulatory arrest when the aortic arch is opened. The unstented part has a different calibre if compared to the stented part, so it can fit to the sinus-tubular junction, and has four side branches: three for the restoration of supra-aortic vessels and one for systemic perfusion. Between the two portions there is a collar which facilitates the distal anastomosis and improves hemostasis. The Thoraflex hybrid comes in different sizes; the proximal part diameters vary from 26 to 32 mm, the stented part from 26 to 40 mm. Two different distal lengths are available (100 and 150 mm). The combination of the various sizes and length allow to tailorize the graft to the patient’s anatomy.

Custom Thoraflex hybrid design and size selection

In the actual configuration, our custom Thoraflex hybrid consists of a conventional Thoraflex hybrid with a stent length of 100 mm which is revised to have only two branches: a main one (16 mm diameter) which four folds into four branches (12/8/10 mm diameter branches for SAT reimplantation and 10 mm branch for cerebral perfusion) and a 10-mm side branch for systemic perfusion (Figure 2). Once opened on the operative field, the main branch is initially separated from the device to allow the completion of the procedure (Figure 3). The main targets are to improve the cerebral perfusion throughout the surgical procedure, to facilitate the correct sizing and trimming of the vascular branches and to reduce the anterior mediastinal encumbrance of the neo-trunk branch vessels thus facilitating sternal closure at the end of the procedure.

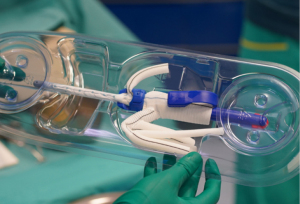

Figure 2 New version of custom Thoraflex hybrid with a stented length of 100 mm and two branches: a main one (16 mm diameter) which four folds into four branches (12/8/10 mm diameter branches for supra-aortic trunk reimplantation and 10 mm branch for cerebral perfusion) and a 10-mm side branch for systemic perfusion.

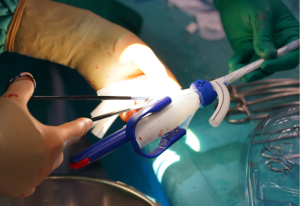

Figure 3 Once opened on the operative field, the main branch is initially separated from the device to allow the completion of the procedure.

The selection of the stented graft size is established by an accurate evaluation of the preoperative CT angiogram of the aorta and comes mainly from the measurement of the aortic diameter of the stented graft landing zone. In case of acute and chronic aortic dissection, no oversizing is performed, whether in case of ascending aorta and/or arch aneurysm, especially if a second surgical treatment is predicted, the size is accorded to the maximum diameter of the thoracic aorta allowing 10–15% of oversize. To reduce the risk of paraplegia, we merely use the 100 mm length so that a shorter tract of the DTA is covered by the stented graft.

Surgical technique

Our peculiar “debranching first” implantation technique has been already described in previous reports (6,7). Transesophageal echocardiography (TEE) and continuous bilateral cerebral oximetry are employed in the entire cohort of our patients.

The conventional mid sternotomy incision is routinely extended in a small bilateral supra-clavicular neck incision to better expose the epiaortic vessels. Right subclavian artery (isolated from anterior mediastinum) or right axillary artery (isolated in the right sub clavicular region) are typically used as arterial site for central cannulation, normally with interposition of a vascular graft (8 or 10 mm, according to the native artery diameter) to prevent direct cannulation of the artery. One of the key aspects of our surgical technique remains a homemade 3-branched perfusion circuit which is used for cardiopulmonary bypass (CPB) and for the selective antegrade cerebral perfusion during moderate hypothermic circulatory arrest. Three branches of equal diameter allow systemic perfusion by a single pump while connected to right subclavian artery and the two side branches of the custom Thoraflex. During CPB time, the perfusion is maintained at theoretical full flow, which is calculated considering body surface area, and deployed to the peripheral organs based on physiological systemic resistance. Once the circulatory arrest begins, the flow is reduced to 10–15 mL/kg/min for selective antegrade cerebral perfusion.

During the initial cooling phase, while the heart is still perfused and beating, LCCA and LSA are isolated, resected and anastomosed to the two dedicated side branches of the vascular prosthesis; cannulation and perfusion of the graft’s cerebral perfusion side branch allows complete trivascular antegrade cerebral perfusion throughout the circulatory arrest time of the operation.

When debranching of arch vessels is completed, the ascending aorta is cross-clamped, opened and cardioplegia administered. Aortic valve and root surgery is then performed as required by the case depending on the primary disease. Once the body temperature is lowered to 28 ℃, the innominate artery is clamped, circulatory arrest stars and selective trivascular antegrade cerebral perfusion begins at 10–15 mL/kg/min. The arch is then opened and the landing zone (normally in zone 2 of the arch) is strengthened with internal and external teflon strips. The stented part of the graft is released in the DTA and its collar is sewed to the arch. At this stage, a systemic visceral perfusion (max 1,200 mL/min flow) is started after cannulation of the side branch dedicated to systemic perfusion. Once the collar suture is completed, systemic full flow is recommenced, and rewarming started. The proximal anastomosis is then finalized, and aortic cross-clamp removed. The innominate artery is now anastomosed to the dedicated branch of the SAT prosthesis. Finally, the main bodies of the FET and the SAT vascular branch of the device are anastomosed back together (Figure 4).

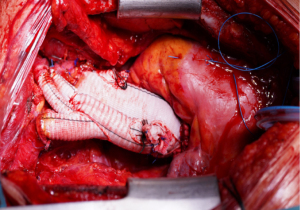

Figure 4 The three supra-aortic vessels are anastomosed the dedicated branches of the custom Thoraflex hybrid. The two perfusion side branches of the device are still cannulated and attached to the CPB circuit. CPB, cardiopulmonary bypass.


Nowadays in several institutions the FET technique is becoming the gold standard for treatment of complex aortic disease. Since 2018, Thoraflex Hybrid has become our favourite FET device mainly due to the benefits of the plexus configuration; however, in a few cases, it is not obvious to decide which is the most appropriate graft’s length, thus theoretically increasing the risk of redundant or kinked branch vessels leading to reduced blood flow to the brain. This problem is particularly significant in small size chest where the space for a correct alignment of the neo-trunks is fewer and sternal closure could represent a challenge because of the encumbrance due to the FET device and its vascular branches.

The custom Thoraflex hybrid, as it is at present, is an updated version of the first custom Thoraflex hybrid. The main difference is in the relationship between the side branches of the four-fold vascular graft which, at present, comes attached to the main body of the graft. There is a specific angle of take-off for each of the vascular branch and a precise distance between the four branches which favours the correct alignment of the neo-trunks. In the actual configuration, the custom Thoraflex hybrid can be potentially used in all the patients requiring complex aortic arch surgery and a FET procedure. We believe that this solution should be available on the shelf in all aortic centres and ready to be used according to the case. It does not require a different learning curve for the operating surgeon as it represents just an evolution of the well-known Thoraflex hybrid device. By adopting our device modification, the graft used for SAT debranching can be easily handled and a direct end-to-end anastomosis is made while perfusing the vessels via the side branch. Incomplete cerebral perfusion is reduced to the moment of LCCA anastomosis. Interestingly, with our custom design, the vessels’ length is more accurate and the position of the neo-vessels in the chest prevents mispositioning and/or kinking and facilitates sternal closure (Figure 5). Another important aspect to underline is the possibility with this device to perform an easier distal anastomosis more proximally on the arch, such as in zone 0 or 1.

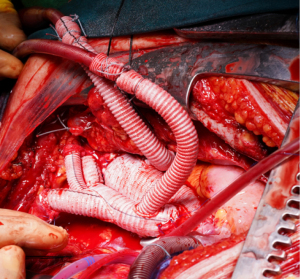

Figure 5 Final result of custom Thoraflex hybrid implantation showing perfect length of supra-aortic vessel grafts with no kinking and reduced anterior mediastinal encumbrance.

More data about short- and long-term outcomes will be available in the future once the number of patients treated with the custom device will increase.


A variation to the basic Thoraflex hybrid design allows full and continuous cerebral trivascular perfusion during the circulatory arrest time of FET procedures, facilitating correct positioning of the intrathoracic vessels and sternal closure by reducing anterior mediastinal encumbrance.
