Interventional creation of an endogenous reverse Potts shunt in an infant with pulmonary hypertension and genetic surfactant disorder—a case report
Case Report on Right Ventricular Dysfunction

Interventional creation of an endogenous reverse Potts shunt in an infant with pulmonary hypertension and genetic surfactant disorder—a case report

Hannes Sallmon1, Felix Berger1,2,3, Sven C. Weber1, Hendrik S. Fischer4, Georg Hansmann5, Bernd Opgen-Rhein1

1Department of Pediatric Cardiology, Charité-Universitätsmedizin Berlin, Berlin, Germany; 2Department of Congenital Heart Disease/Pediatric Cardiology, Deutsches Herzzentrum Berlin (DHZB), Berlin, Germany; 3Deutsches Zentrum für Herz- und Kreislaufforschung, Partnersite Berlin (DZHK), Berlin, Germany; 4Department of Neonatology, Charité-Universitätsmedizin Berlin, Berlin, Germany; 5Department of Pediatric Cardiology and Critical Care, Hannover Medical School, Hannover, Germany

Correspondence to: Hannes Sallmon, MD. Department of Pediatric Cardiology, Charité-Universitätsmedizin Berlin, Augustenburger Platz 1, 13353 Berlin, Germany. Email: hannes.sallmon@charite.de.

Abstract: Reverse Potts shunt is a palliative procedure aimed at decompressing the pressure-overloaded right ventricle in severe pulmonary hypertension (PH). We, herein, report the first case of an interventional creation of an “endogenous” reverse Potts shunt by stenting a pre-existing small but patent ductus arteriosus (PDA) in a 2 months old female infant with severe, supra-systemic PH, associated with a novel combination of a compound heterozygous ABCA3 mutation and additional heterozygous genetic variants of surfactant protein B (SFTPB) and C (SFTPC). The aforementioned combination of human genetic mutations has not been described before in viable infants, children or adults. The catheter intervention was performed via percutaneous femoral arterial access and was well-tolerated. Subsequently, the infant improved by means of clinical status, echocardiographic systolic right ventricular (RV) function, and serum NT-proBNP levels as biomarker of right atrial and RV pressure load. In conclusion, this single case report suggests that interventional stenting of a pre-existing PDA to create an “endogenous” reverse Potts shunt is feasible and efficacious in infants less than 3 months old with severe PH and impending RV failure associated with developmental lung disease.

Keywords: ABCA3; SFTPB; SFTPC; neonate; ductus arteriosus; ductal stenting; Potts shunt


Submitted Feb 07, 2020. Accepted for publication Mar 19, 2020.

doi: 10.21037/cdt.2020.03.11


Introduction

Genetic disorders of surfactant production and metabolism (ABCA3, SFTPB, SFTPC) present with a high phenotypic variety, ranging from severe respiratory failure at birth to interstitial lung disease in older children and adults (1). Patients may also develop pulmonary hypertension (PH), which can be life-limiting, if right ventricular (RV) failure is impending (1,2). In addition to standard treatment protocols aimed at treating the underlying lung disease (e.g., corticosteroids, hydroxychloroquine, and supportive measures), pulmonary vasodilators have been used in patients with PH associated with developmental lung disease with different results (1).

Reverse Potts shunt creation by ductal stenting and balloon atrial septostomy (BAS) represent palliative treatment options in severe, systemic-to-supra-systemic PH. These procedures decompress the right atrium (BAS) or the RV (reverse Potts shunt) and result in a hemodynamic situation that is similar to the physiology of Eisenmenger patients. However, only the reverse Potts shunt can prevent RV failure mid- to long-term, and—in contrast to BAS—preserves adequate preductal arterial oxygen supply to the upper body, including heart and brain (3-5). Reverse Potts shunt circulation is achieved by either surgical or interventional creation of a connection between the descending aorta and the pulmonary artery (PA), which secures sufficient cardiac output, at the expense of hypoxemia in the lower half of the body (3-5). Although reverse Potts shunt creation is recommended as palliation or bridge-to-transplantation in current guidelines on pediatric PH (6), its use has not been previously reported in young infants with severe PH associated with developmental lung disease.

Here, we report the first case of interventional creation of reverse Potts shunt by stenting a pre-existing ductus arteriosus (“endogenous” Potts shunt) in a female infant with severe PH associated with a compound heterozygous ABCA3 mutation and additional, possibly disease-associated heterozygous SFTPB and SFTPC variants. We present the following case in accordance with the CARE Guideline (available at http://dx.doi.org/10.21037/cdt.2020.03.11).


Case presentation

A term female infant (41+3 weeks of gestation, 3,540 g) presented with tachypnea and hypoxemia after spontaneous delivery. Echocardiography on the first day of life revealed a moderately elevated RV systolic pressure (RVSP) of 70–80 mmHg [RVSP 70 mmHg plus right atrial v wave, estimated by the maximum velocity of the tricuspid regurgitation (TR) jet by CW Doppler] and a small persistent foramen ovale, but no cardiac anomalies. The infant was diagnosed with persistent pulmonary hypertension of the newborn (PPHN) and admitted to the neonatal intensive care unit. She required respiratory support by continuous positive airway pressure for 60 hours and supplementary oxygen for 80 hours. Empiric antibiotic treatment with ampicillin and gentamicin was performed for 48 hours despite normal laboratory testing and chest X-ray results (Figure 1). The infant improved clinically and was discharged on day of life 7 in stable condition, with normal breathing and normal peripheral oxygen saturations.

Figure 1 Chest X-ray on the first day of life. The chest X-ray did not indicate any specific pulmonary pathology.

In the following weeks of life, the parents recognized drinking difficulties and consulted their community-based pediatrician who noted moderate tachypnea and referred the infant for pediatric cardiology consultation.

Upon admission, we saw an 8-week-old female infant (body weight 4.4 kg, body surface area 0.27 m2) with echocardiographic signs of supra-systemic PH (RVSP 140 mmHg by TR jet) and imminent RV failure, characterized by RV dilation and severely depressed systolic RV function: grade 2–3 TR, decreased tricuspid annular plane systolic excursion (TAPSE, 7 mm) and pulmonary artery acceleration time (PAAT 44 ms), increased end-systolic RV/LV diameter ratio (18 mm/3 mm, Figure 2A) and end-systolic LV eccentricity index (LV-EI, 3.2). A residual patent ductus arteriosus (PDA) showed exclusive right-to-left shunt with clear narrowing at the junction to the descending aorta (minimum ductal diameter 0.8 mm). In an attempt to reopen the constricting, flow-restrictive PDA, the infant immediately received continuous prostaglandin E1 infusion (20 ng/kg/min). In addition, we initiated milrinone and pulmonary vasodilatory treatment with sildenafil and bosentan. Since the PDA did not reopen sufficiently with PGE1 infusion while there was still supra-systemic PH and imminent RV failure, we performed cardiac catheterization. We confirmed supra-systemic PH (113%) with a PA pressure of 71/29 (mean 45) mmHg and an ascending aortic pressure of 55/23 [mean 40] mmHg, a PA wedge pressure (PAWP) of 9 mmHg, a mean transpulmonary pressure gradient (TPG) of 36 mmHg, a diastolic TPG of 20 mmHg, a pulmonary-to-systemic blood flow ration (Qp/Qs) of 0.93:1, an estimated indexed pulmonary vascular resistance (PVRi) of 8.9 WU × m2, and a pulmonary-to-systemic resistance ratio of 1.27:1 (PVR/SVR). Subsequently, a Cordis PALMAZ BlueTM Stent (4 mm × 15 mm, 11 bar, Cardinal Health Germany, Norderstedt, Germany) was percutaneously implanted via a 4 French sheath in the right femoral artery under general sedation (Figure 2B,C,D,E), without any complication. Of note, the above flow data (Qs, Qp, PVR, SVR) are rough estimates using the Fick principle, as this patient had anatomically two possible sources of pulmonary blood flow, PA and PDA. However, we feel that the above-mentioned calculations are adequate in our case due to exclusive ductal right-to-left shunting. Thus, the PA oxygen saturation was most likely not contaminated by highly saturated ductal blood flow.

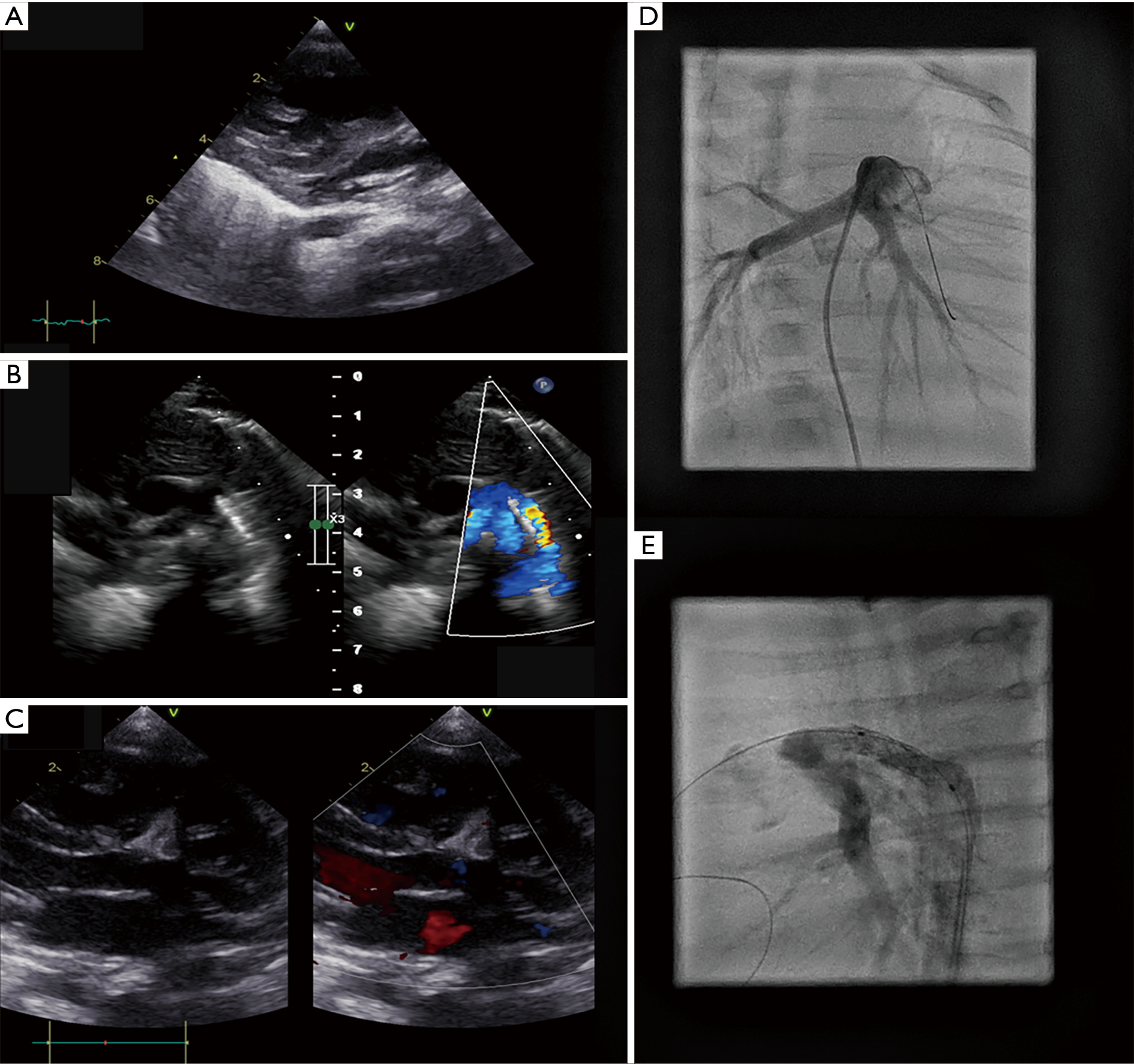

Figure 2 Echocardiography and pulmonary angiography after stenting of the restrictive ductus arteriosus in an infant with PH and imminent RV failure. (A) Echocardiographic parasternal long axis view on admission shows a severely compressed left ventricle; (B) echocardiographic parasternal short axis after Ductus arteriosus stenting reveals systolic right-to-left shunt; (C) echocardiographic parasternal long axis view after endogenous Potts shunt shows marked decompression of the left ventricle; (D) pulmonary angiography; (E) angiography-guided ductal stent placement.

The PDA-stenting was well-tolerated and substantially improved echocardiographic variables of RV function. Blood flow direction through the stented ductus was right-to-left in systole, and left-to-right in diastole, indicating a diastolic PAP/SAP ratio of <1 and a PVR/SVR ratio of <1. TR, TAPSE and PAAT improved to grade 1, 12 mm, and 70 ms, respectively. In addition, end-systolic RV/LV diameter ratio and LV-EI decreased immediately after the procedure to 9.5 mm/7.3 mm and 1.9, and further improved after 1 week to 10.5 mm/8.5 mm and 1.4, respectively, indicating pressure-unloading of the RV and less end-systolic compression of the LV. Serum NT-proBNP levels decreased from 8,049 ng/L upon admission to 2,285 ng/L 3 days after PDA stenting. The 9-week-old infant (4.85 kg bodyweight) could be discharged on oral sildenafil, bosentan, L-arginine, magnesium, and nasal oxygen (1/min 100%).

We initiated genetic panel testing for pulmonary arterial hypertension and interstitial lung disease. We found a novel combination of a compound heterozygous mutation in the ABCA3 gene (NM_001089.2:c.2890G > A, Gly964Ser, exon 21; NM_001089.2:c.2125C > T, Arg709Trp, exon 17) and heterozygous polymorphisms in the SFTPB (NM_198843.2:c.428T > C, Ile143Thr, exon 5, autosomal recessive) and SFTPC genes (NM_003018.3:c.413C > A, Thr138Asn, Exon 4; NM_003018.3:c.557G > A, Ser186Asn, Exon 5, autosomal dominant).

High-resolution chest computed tomography (HR-CT) showed typical signs of developmental lung disease associated with disorders of surfactant protein synthesis and/or metabolism (Figure 3). Subsequently, the infant received methylprednisolone courses and hydroxychloroquine was initiated. NT-proBNP levels further decreased to 1,180 ng/L and right heart function remained stable while growth and development were appropriate during the first 5 months of life.

Figure 3 Computerized chest tomography. The CT revealed ground glass opacities and unspecific infiltration in both lungs, consistent with lung disease due to disorders of surfactant synthesis and/or metabolism. CT, computed tomography.

Discussion

Herein, we report on the first creation of an endogenous Potts shunt by stenting a pre-existing, restrictive PDA in an infant with severe, supra-systemic PH and impending RV failure associated with developmental lung disease. There is an ongoing debate on the optimal management of infants with lung disease and PH (group 3 PH) (6). Pulmonary vasodilative therapy is often applied, but has not been systematically studied in this patient population (1), and the response to pharmacotherapy is very heterogeneous and usually limited (1,2). Furthermore, it is still unclear which factors determine the response to pulmonary vasodilators in infants with PH and lung disease due to a proven genetic mutation. The vast variety in both pheno- and genotypes in infants with genetic surfactant protein and/or ABCA3 disorders highlights the critical need for further research (7,8), including patient registries (9), in order to identify clinical and genetic determinants of treatment response and outcome.

Our patient exhibited a compound heterozygous ABCA3 mutation. Both mutations (NM_001089.2:c.2890G > A and NM_001089.2:c.2125C > T) have been previously described as part of different compound heterozygous mutations with varying pulmonary phenotypes in infants and adults (7,8,10). However, the combination of ABCA3 mutations we detected has not been reported yet in any human heart-lung conditions. In addition, we found possibly disease-associated heterozygous variants in the SFTPB and SFTPC genes.

Our case highlights that unexplained PPHN requires a close and timely cardiac follow-up to detect chronic PH of infancy. The etiology can be either idiopathic or due to several heart and lung diseases or systemic disorders (6). Early genetic testing might lead the way to suspect the correct, etiological diagnosis before more invasive testing, such as CT scans or lung biopsies, needs to be performed. In infants with supra-systemic PH, an attempt to pharmacologically reopen a (residual, flow-restrictive) PDA provides an elegant method to rapidly decompress a pressure-overloaded, failing RV. In infants with PH associated with interstitial and/or diffuse lung disease, the response to pulmonary vasodilative therapy is heterogeneous and often limited (1), thus making interventional procedures, such as reverse Potts shunt creation or BAS, attractive options as a palliation or as a bridge to transplantation (3,6,11).

In conclusion, we report the first interventional creation of an endogenous Potts shunt by ductal stenting, in an infant with severe PH associated with lung disease caused by a combined genetic disorder of surfactant metabolism and/or synthesis. Endogenous Potts shunt creation by stenting a pre-existing PDA is suitable for long-term management of even small infants with severe PH associated with lung disease. Certainly, further research on the optimal management of infants with PH associated with diffuse or interstitial lung disease is warranted in order to improve outcomes in this especially diverse and vulnerable patient population.
